Latest Lithium Ion Primary Battery Lithium Ion Primary Battery Company

Company Advantages

· WECODO lithium ion primary battery adopts the highest standard for the selection of raw materials.

· We have a professional lab to ensure high quality for this product.

· Shenzhen WECODO Technology Co., Ltd. promotes the systematic improvement of its competitiveness.

Items	Specification	Remarks

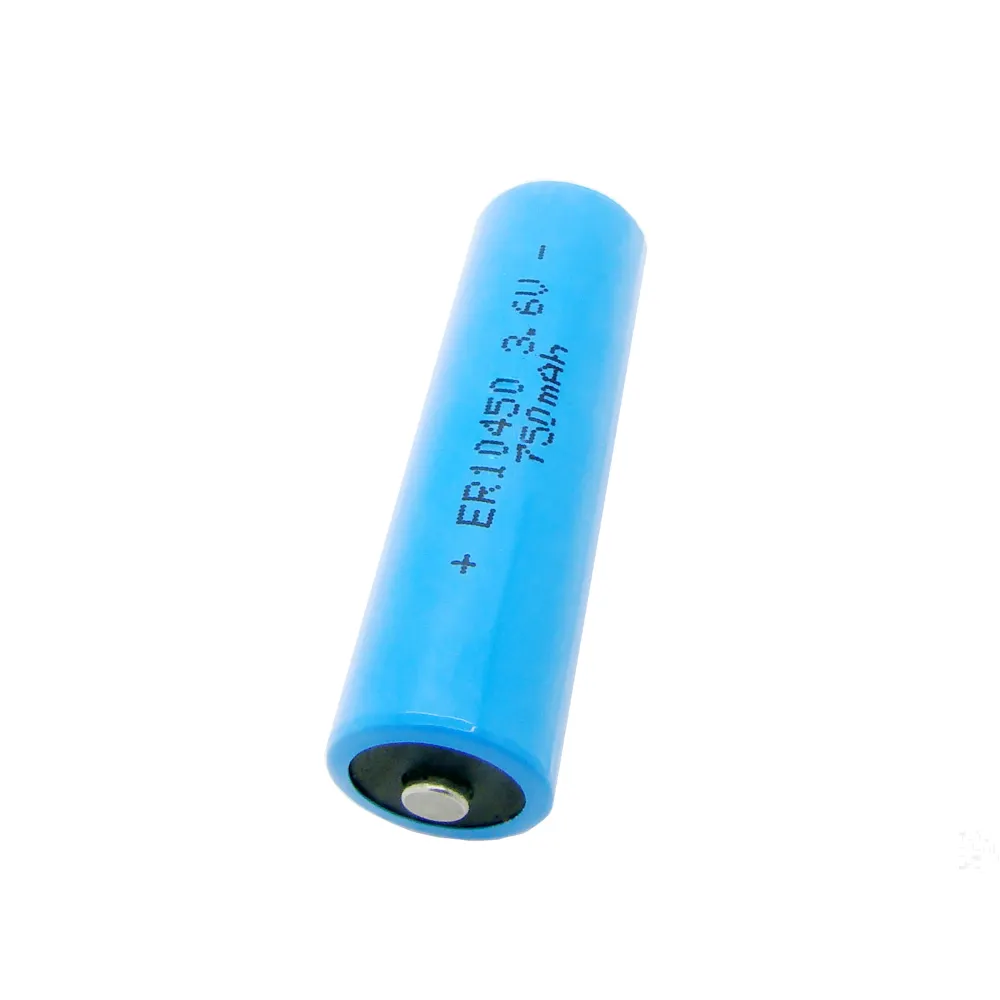

Model	ER10450
Rated voltage	3.6V	At 3mA +20˚C
Rated capacity	1000mAh	3mA +20˚C,2.0V
Open-circuit voltage	3.66V	At +20˚C
Max constant discharge current	10mA	At +20˚C
Max pulse discharge current	20mA	At +20˚C
Storage temperature range	+30˚C(+86˚F)	Max
Operating temperature range	-55˚C~+85˚C	-76˚F~+185˚F
Air tight test	No electrolyte leakage	Normal use
Size	10.5*45.0mm
Weight	9.0g
Self discharge	≤1% per year

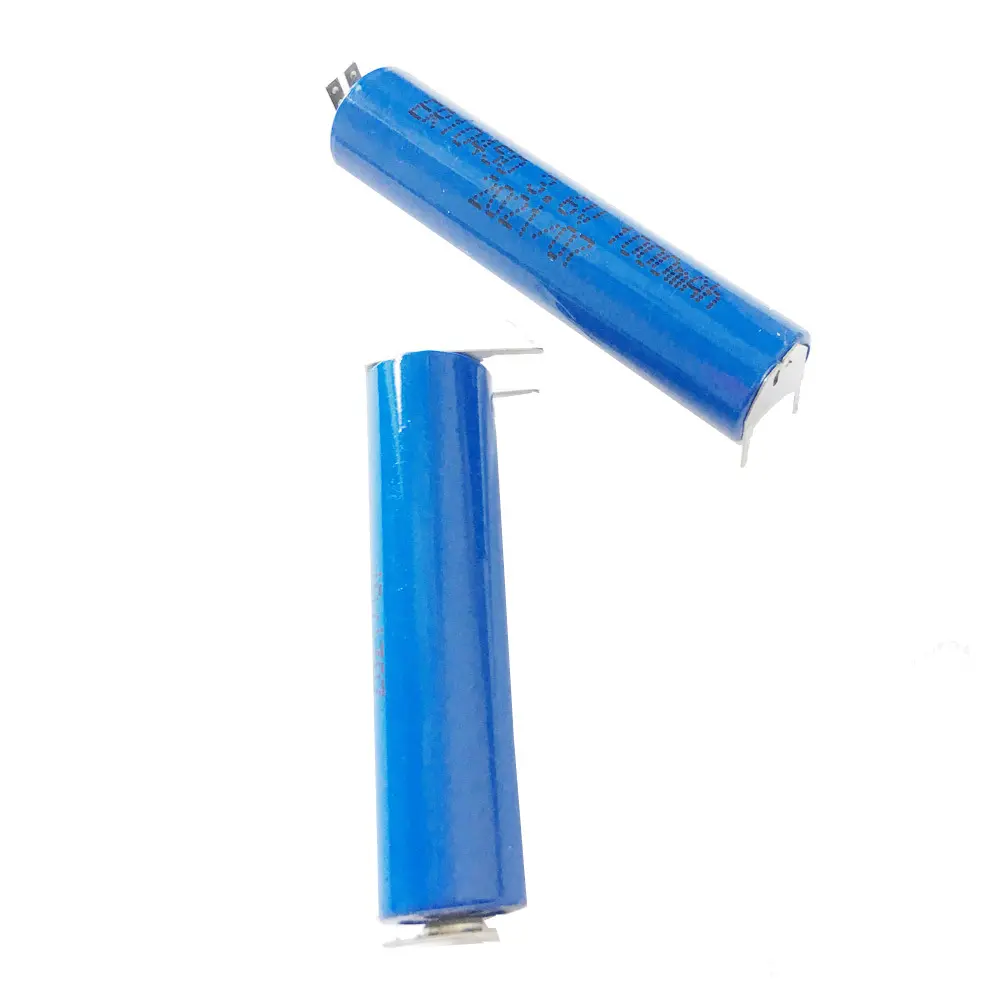

Terminal	radial tabs, radial pins, axial leads, flying leads
We also supply ER10240, ER10280, ER10450, ER14250, ER14335, ER14505, ER17335, ER17505, ERI8505, R26500,ER34615, ER341245, ER9V



product description

Key features

● High and stable load voltage ● Superior drain capacity ● Low self-discharge rate(less than 1% after 1 year of storage at 20°C) ● Stainless steel container ● Hermetic glass-to-metal sealing ● Laser welding ● Non-flammable electrolyte

Main applications

● Radio communication and other military applications ● TPMS ● RFID ● Alarms and security systems ● Beacons and emergency location transmitters ● GPS equipment ● Metering systems ● Led lighting applications >Others

Storage

● Cells should be stored in a clean &dry(less than 30% RH) area ● Temp. should not exceed +30°C

Warning

● Do not use if cell casing is mangled >Do not use different model of cell in series ● Soldering the tag should be finished in few seconds ● Do not try to recharge

product data

1 (3)

2 (3)

3 (4)

4 (3)

Company Features

· In comparison with other lithium ion primary battery enterprises, Shenzhen WECODO Technology Co., Ltd. has more production lines and thus higher capacity.

· In order to better ensure the ideal quality of lithium ion primary battery, WECODO has been continuously improving the technology. In order to improve market competitiveness, WECODO is mainly spent in optimizing technology production of lithium ion primary battery.

· We make sure that our production activities do not pose any risk to the environment, and treat hazardous substances and emissions in an appropriate and serious manner before we throw out or discharge them.

Application of the Product

Our lithium ion primary battery has a wide range of applications and can be used in a variety of situations and scenarios.

With many years of practical experience, WECODO is capable of providing comprehensive and efficient one-stop solutions.

Enterprise Advantages

Our company has a professional team composed of various middle and senior technical talents. The team members are experienced and skilled, so the technical guidance and consultation are guaranteed.

WECODO has a professional service team whose team members are dedicated to solving all kinds of problems for customers. We also run a comprehensive after-sales service system which enables us to provide a worry-free experience.

WECODO sticks to the core value of 'high level, high quality, and high value'. We always seize the opportunity and develop with the times. With the enterprise spirit, we intend to be tough, determined and tenacious. We look forward to cooperating with more outstanding companies in the industry and creating a wonderful future.

Since the establishment in WECODO has been developing for years and has become a leader in the industry.

WECODO's Rechargeable Lithium Battery,Primary Lithium Battery,Battery Related are sold well in many cities and regions across the country.
