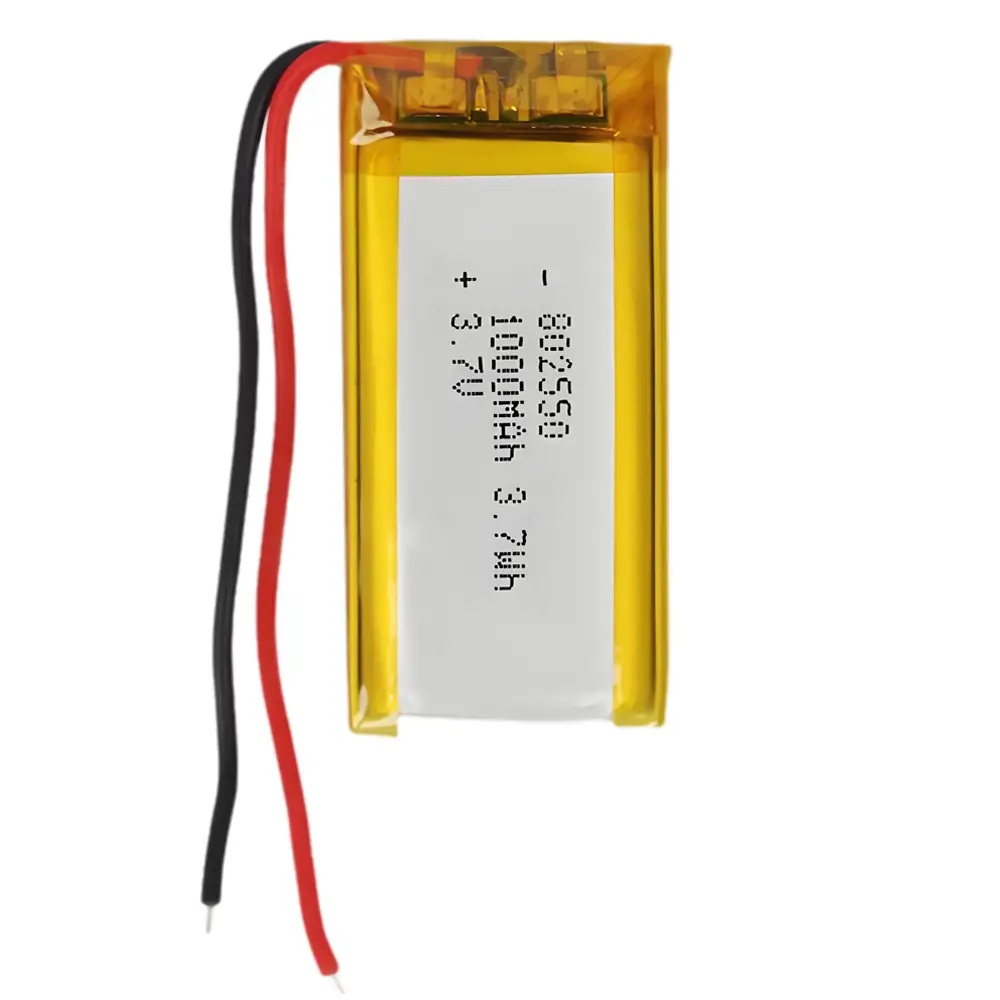

1000mAh Lithium Polymer Battery 3.7V 7.4V 11.1V 802550 for Beauty Tracking GPS
5.0
Standard weight:
15g
Nominal capacity:
1000mAh
Open circuit voltage:
4.2V
Nominal voltage:
3.7V
Max. continuous current:
1000mA
Typical max. pulse current:
1000mA
Storage:
-5~30℃
Operating temperature range:
charging: 0 ～ 45℃; discharge: -10 ～ 60℃
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Items | Specification | Remarks |
| Model |
PL802550 | |
| Rated voltage | 3.7V | At 0.2C dischaarge |
| Rated capacity | 1000mAh | |
| Initial cell impedance | ≤ 30 mΩ |
|
| Initial Voltage | 3.75V-3.95V | |
| Limited Charge Voltage | 4.2V | CC to CV |
| Cut-off Voltage | 2.75V | |
| Standard charge current |
200mA | |
| Standard charge time | 6-7 hours | |
| Rapid charge current | 1000mA | |
| Rapid charge time | 2-3 hours | |
| Standard discharge current | 200mA | |
| Max pulse discharge current | 1000mA | |
| Storage temperature range | 15˚C~+35˚C | recommend |
| Operating temperature range |
charging: 0˚C~+45˚C discharging: -10˚C~+60˚C |
|
| Size |
Thickness: 5.3mm Width: 20mm Length: 67mm |
|
| Weight | 15g |
