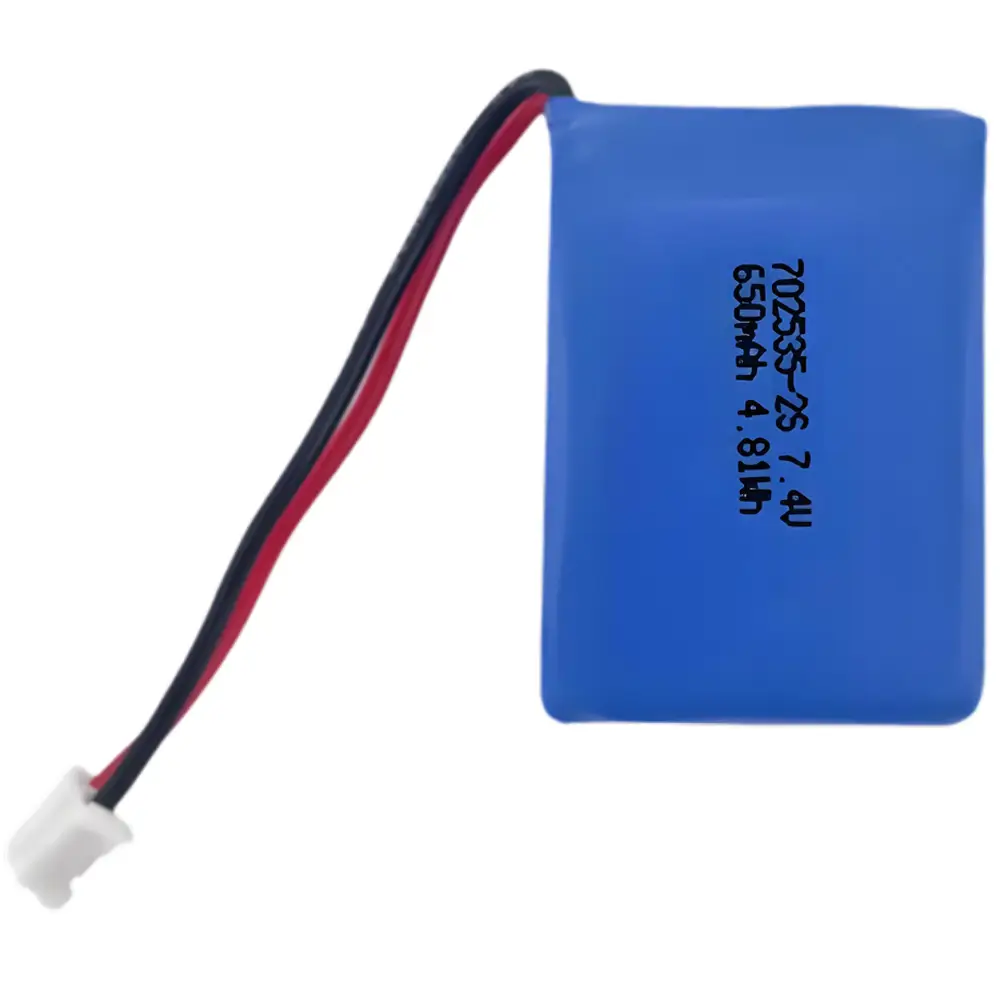

PL702535 PL902535 Lithium Polymer Battery 3.7V 7.4V 11.1V for Tracking GPS
5.0
Standard weight:
24g
Nominal capacity:
650mAh
Open circuit voltage:
4.2V
Nominal voltage:
7.4V
Max. continuous current:
650mA
Typical max. pulse current:
1300mA
Storage:
-5~30℃
Operating temperature range:
charging: 0 ～ 45℃; discharge: -10 ～ 60℃
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Items | Specification | Remarks |
| Model |
PL702535 | |
| Rated voltage | 7.4V | At 0.2C dischaarge |
| Rated capacity | 650mAh | |
| Initial cell impedance | ≤ 30 mΩ |
|
| Initial Voltage | 7.5V-7.9V | |
| Limited Charge Voltage | 8.4V | CC to CV |
| Cut-off Voltage | 5.4V | |
| Standard charge current |
130mA | |
| Standard charge time | 6-7 hours | |
| Rapid charge current | 650mA | |
| Rapid charge time | 2-3 hours | |
| Standard discharge current | 130mA | |
| Max pulse discharge current | 650mA | |
| Storage temperature range | 15˚C~+35˚C | recommend |
| Operating temperature range |
charging: 0˚C~+45˚C discharging: -10˚C~+60˚C |
|
| Size |
Thickness: 14mm Width: 25mm Length: 37mm |
|
| Weight | 24g |
