Custom Lithium Ion Battery Manufacturers 1200mA - - WECODO

Product details of the custom lithium ion battery manufacturers

Quick Detail

custom lithium ion battery manufacturers is made by new environmentally-friendly material. The product is manufactured with high precision to meet the set industry quality standards. For years, Shenzhen WECODO Technology Co., Ltd. has went on the custom lithium ion battery manufacturers market in an invincible position.

Product Introduction

The custom lithium ion battery manufacturers of WECODO has been improved greatly in the following aspects.

Items	Specification	Remarks

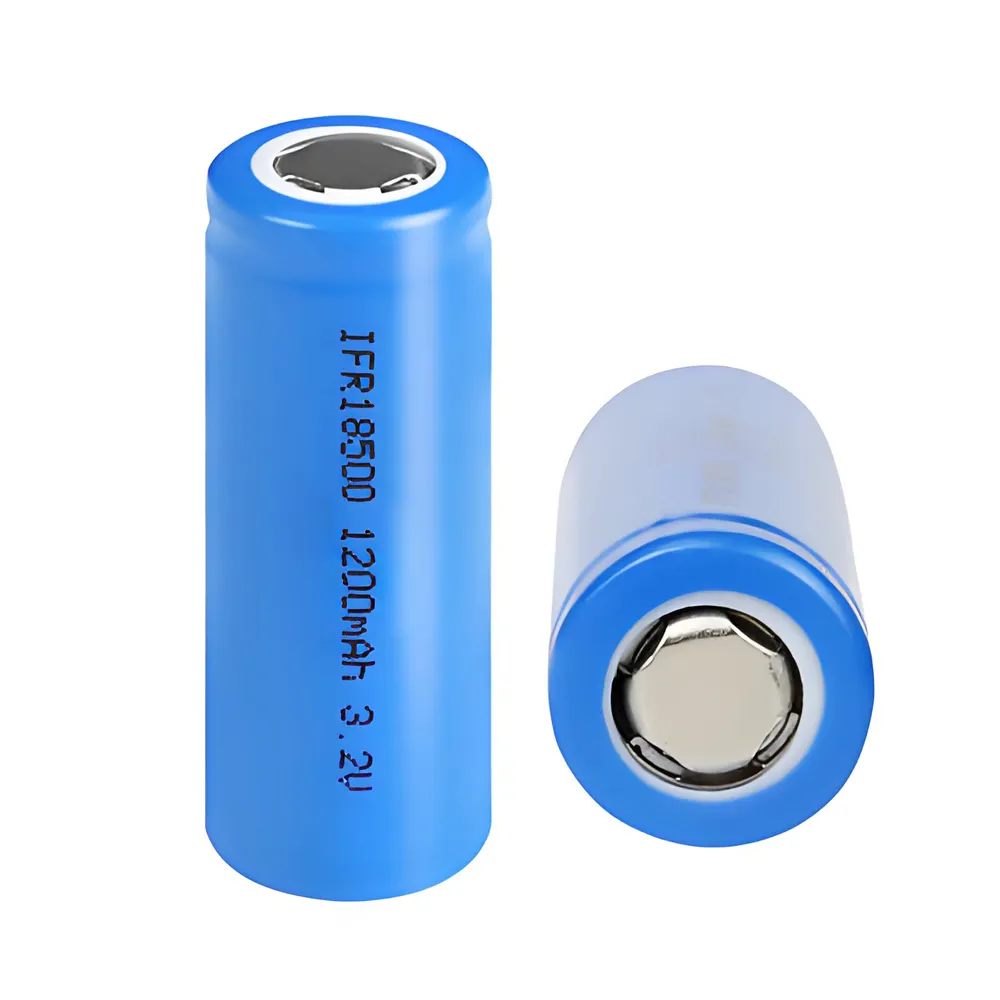

Model	IFR18500
Rated voltage	3.2V
Rated capacity	1200mAh
Standard charge	CC/CV,0.5C to 3.65V
Standard discharge	CC,0.2C5A,3.0V
End-of-charge voltage	3.65V
End-of-charge current	0.01C5A(at CV mode)
End-of-discharge voltage	2.5V
Charging time	8 hours
Max constant discharge current	1200mA	At +20˚C
Max pulse discharge current	3600mA	At +20˚C
Internal resistant	Max 30mW
Storage temperature range	-20˚C~+45˚C	Max
Charging temperature range	0˚C~+55˚C
Discharging temperature range	-20˚C~+60˚C
Size	2185*50.5mm max
Weight	86.0g
Terminal	wires and connector, pins
We also supply Li 10440 Li14500 Li14650 Li16500 Li17500 Li17650 Li18350 Li18500 Li18650

Application Scenario

Portable Medical Equipment

Reliable power for medical devices.

Security Systems

Long-lasting energy for surveillance.

Emergency Locator Beacons

Dependable performance in emergencies.

High-Drain Devices

Extended use for power-hungry gadgets.

Company Advantages

WECODO is famous in the custom lithium ion battery manufacturers field. Due to technical strength, we can provide products such as custom lithium ion battery manufacturers with stable performance. You can trust Shenzhen WECODO Technology Co., Ltd. on our great capacity. Inquire!
Our products are all qualified and are sold directly from factory. Welcome friends from all walks of life to contact and consult us.
