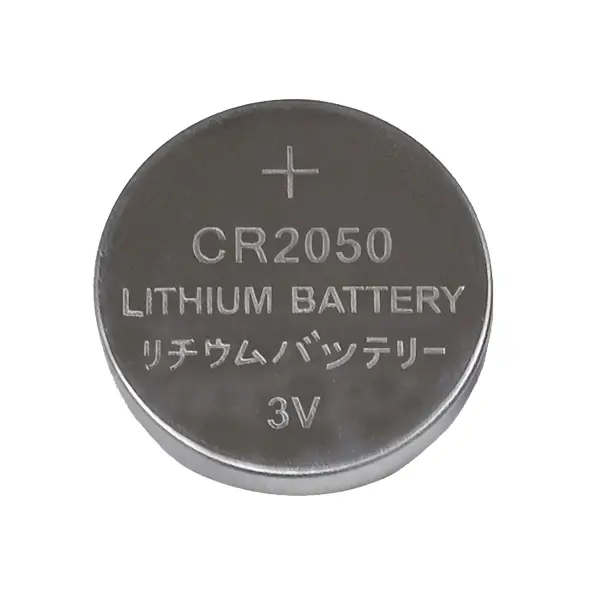

3V CR2050 Battery for TPMS, ETC and Medical Devices
● Nominal voltage 3.0V
● Nominal capacity 360mAH
● Operating temperature -20~60℃
● Off-load voltage ≥3.20V
● Standard weight ~4.1g
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS | |
| Model | CR2025 | |||
| Nominal voltage | V | 3 | ||
| Nominal capacity | mAh | 360 | Standard discharge with load 7.5kΩ | |
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second | |
| Off-load voltage | V | ≥3.2 | Without load | |
| Operating temperature | ℃ | -20~60 | ||
| Standard weight | g | ~4.1 | Unit cell | |
| Discharge capacity | Initial | Standard | 1010 hours | Continuous discharge with load 7.5kΩ, till 2.0v end-voltage |
| After 12 months storage | Standard | 960 hours | ||
| ITEM | CONDITIONS | CHARACTERISTICS | |
| Thermal durability | Storage for 20 days at 50℃±3℃, then continuously discharge with 15kΩ load till 2.0v end-voltage | Standard | 960 hours |
| Self-discharge rate | Storage for 12 months at normal temperature and humidity | ≤1% | |
