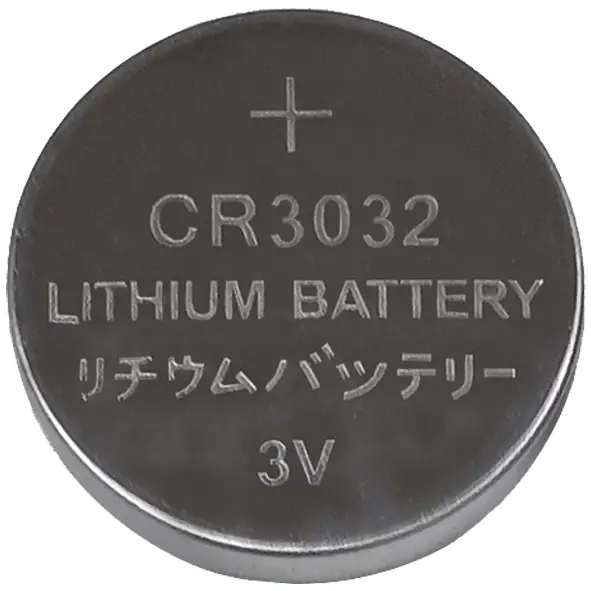

Lithium Manganese Button Battery CR3032 3V Coin Cell Battery for watch
● Nominal voltage 3.0V
● Nominal capacity 500mAH
● Operating temperature -20~60℃
● Off-load voltage ≥3.20V
● Standard weight ~7.1g
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| ITEM | UNIT | SPECIFICATIONS | CONDITIONS | ||
| Model | CR3032 | ||||
| Nominal voltage | V | 3 | |||
| Nominal capacity | mAh | 500 | Standard discharge with load 6.8kΩ | ||
| Instantaneous short–circuit current | mA | ≥250 | Time≤0.5 second | ||
| Off-load voltage | V | ≥3.20 | |||
| Operating temperature | ℃ | -20~60 | |||
| Standard weight | g | ~7.1 | Unit cell | ||
| Discharge capacity | Initial | Standard | 1100 hours | Continuous discharge with load 6.8kΩ, till 2.0v end-voltage at 20~25℃ | |
| After 12 months storage | Standard | 880 hours | |||
| ITEM | CONDITIONS | CHARACTERISTICS | |
| Thermal durability | Storage for 20 days at 60℃±3℃, then continuously discharge with 6.8kΩ load till 2.0v end-voltage | Standard | 950 hours |
| Self-discharge rate | Storage for 12 months at normal temperature and humidity | ≤1% | |
