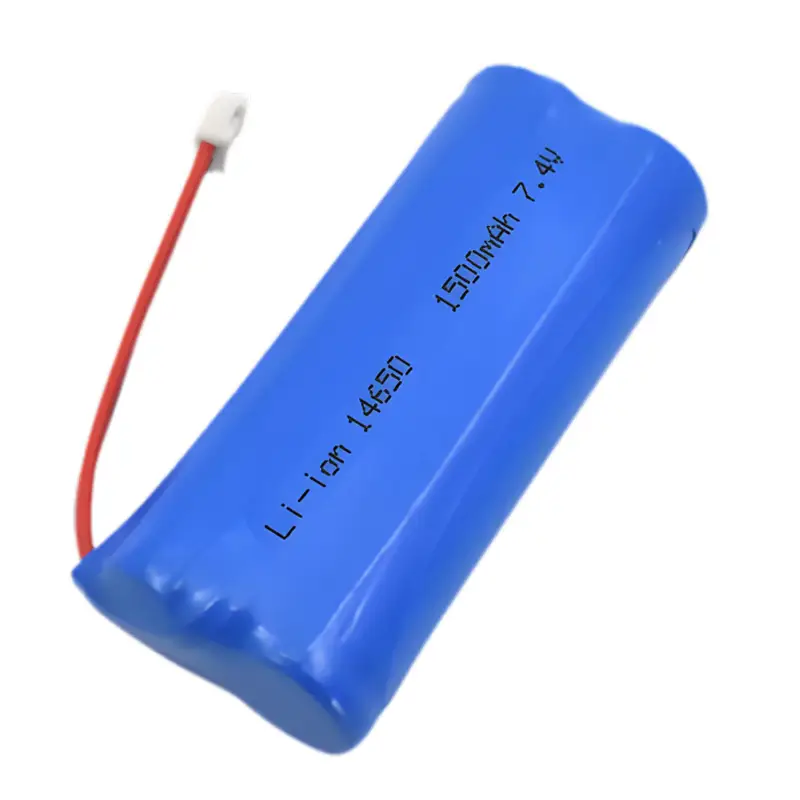

Li 14650 Lithium ion Battery Rechargeable 3.7V 7.4V 11.1V 1500mAh
5.0
Standard weight:
25g
Nominal capacity:
1500mAh
Open circuit voltage:
4.2V
Nominal voltage:
3.7V
Max. continuous current:
1500mAh
Typical max. pulse current:
4500mAh
Storage:
-5~30℃
Operating temperature range:
charging: 0~45℃ discharging:-20~60℃
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Item | Parameters |
| Model | 14650 |
| Typical Capacity | 1000~1500mAh |
| Minimum capacity | 1480mAh |
| Nominal voltage | 3.70V |
| Standard Charge | CC/CV.0.2CsA.4.20V |
| Standard Discharge | CC.0.2CsA.3.00V |
| End-of-charge Voltage | 4.20V |
| End-of-charge Curent | 0.02CsA (AtCVmode) |
| End-of-discharge Voltage | 3.00 V |
| Charging Time | 8.0hours(standard charge) |
| Quick Charge Current | 1500mA(1.0Csrate)1C |
| Quick Discharge Current | 1500mA(1.0Csrate)1C |
| Maximum discharge current | 4500mA(3.0Csrate)3C |
| Initial Impedance | Max:180mΩ |
| Weight | Approx:25士2g |
| Operating temperature | Chargig:0C-45℃,Discharging:-20℃-60℃ |
