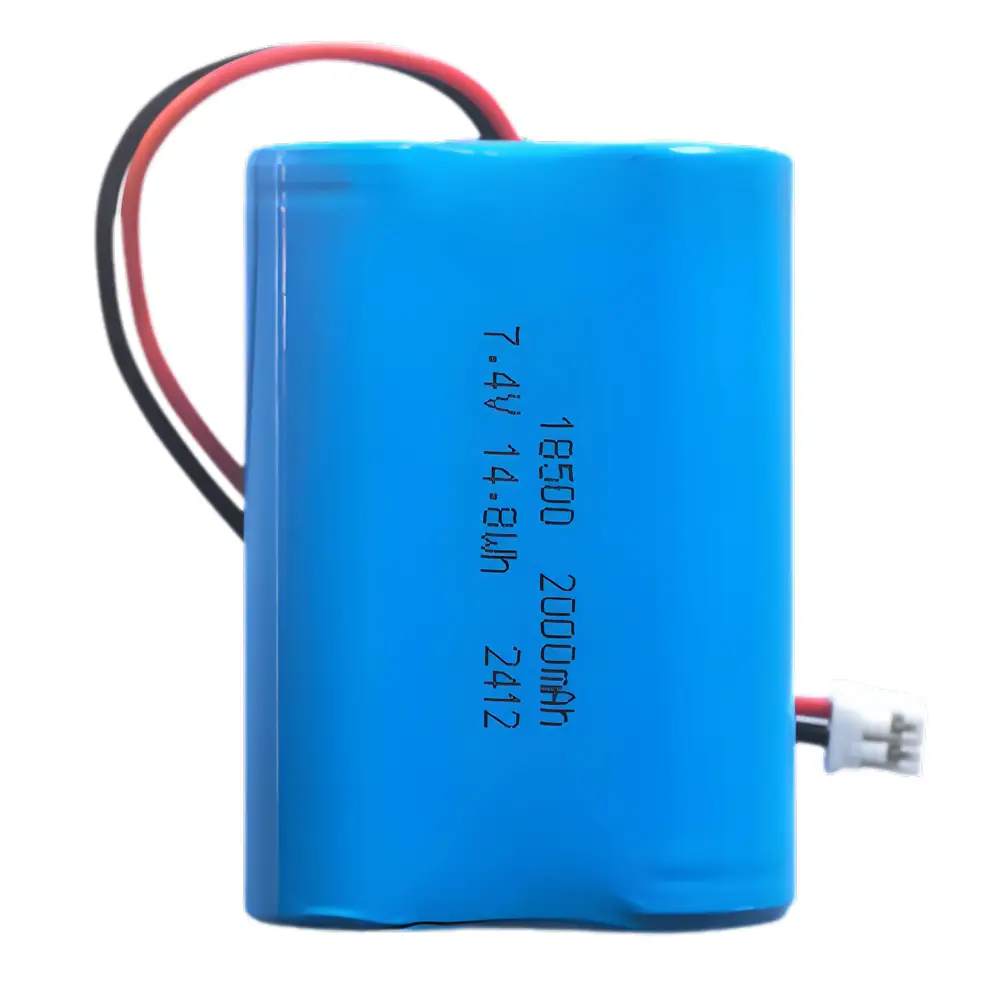

Lithium ion Battery Rechargeable 7.4V 11.1V 14.8V Li 18500 Size 2000mAh
5.0
Standard weight:
92g
Nominal capacity:
2000mAh
Open circuit voltage:
8.4V
Nominal voltage:
7.4V
Max. continuous current:
2000mA
Typical max. pulse current:
4000mA
Storage:
-5~30℃
Operating temperature range:
charging: 0~45℃ discharging:-20~60℃
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Items | Specification | Remarks |
| Model |
18500 |
|
| Rated voltage | 7.4V | |
| Rated capacity | 2000mAh | |
| Standard charge | CC/CV,0.2C5A,4.2V | |
| Standard discharge | CC,0.2C5A,3.0V | |
| End-of-charge voltage | 8.4V | |
| End-of-charge current | 0.02C5A(at CV mode) | |
| End-of-discharge voltage | 5.5V | |
| Charging time | 8 hours | |
| Max constant discharge current | 2000mA | At +20˚C |
| Max pulse discharge current | 6000mA | At +20˚C |
| Internal resistant | Max 180mW | |
| Storage temperature range | -5˚C~+35˚C | Max |
| Charging temperature range | 0˚C~+45˚C |
|
| Discharging temperature range | -20˚C~+60˚C | |
| Size | 18.5*38.5*50.5mm max | |
| Weight | 92.0g | |
| Terminal | wires and connector, pins | |
| We also supply Li 10440 Li14500 Li14650 Li16500 Li17500 Li17650 Li18350 Li18500 Li18650 | ||
