7.4 V Lithium Polymer Battery 3.7V by WECODO
Product details of the 7.4 v lithium polymer battery
Product Overview
The whole production of WECODO 7.4 v lithium polymer battery is completed by the combination of sophisticated equipment and professional staff. The quality guarantee of this product can stand all kinds of strict inspection. The 7.4 v lithium polymer battery developed by our company can play a role in various fields. Shenzhen WECODO Technology Co., Ltd. has highlighted the importance of customer satisfaction.
Product Introduction
Our company pursues superior quality. In the production process, we are dedicated to creating perfection in every detail.
| Items | Parameters | Remarks |

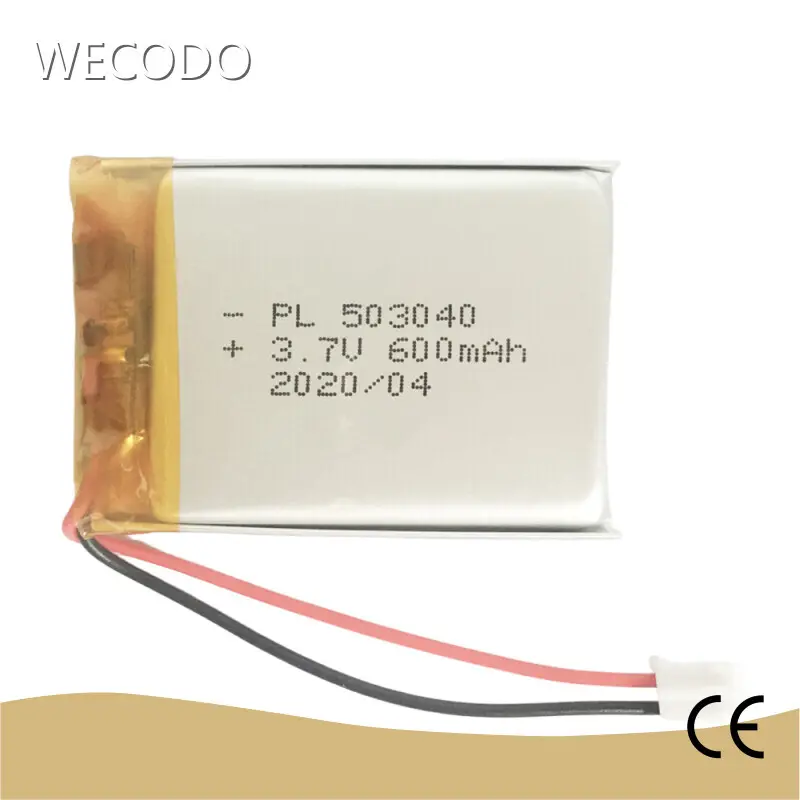

| Model | PL503040 | |
| Rated Capacity | 600 mAh | 0.2C discharge |
| Cell Weight | 12g | |
| Cell Initial Impedance | ≤ 80 mΩ | 3.7V AC 1KHz measured |
| Normal Voltage | 3.7 V | |
| Initial Voltage | 3.75V~3.95V | |
| Limited Charge Voltage | 4.2 V | Voltage of cc charge to cV charge |
| Standard Charging Method | 0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C | |
| Cut-off Voltage | 2.75 V | Load Voltage when discharge ended |
| Standard Charging Current | 120 mAh (0.2C) | |
| Standard Charging Time | 6~7 hours | CC charge to 4.2 V, then CV charge till current declines to less than 0.01C |
| Rapid charging Current | 600 mAh (1.0c) | |
| Rapid Charging Time | 2~3 hours | |
| Standard Discharging Current | 120 mA (0.2C) | CC discharge to 2.75 V |
| Max. Discharging Current | 600 mA (1.0C) | CC discharge to 2.75 V |
| Operating Temperature | Charging :0~45°C, Discharging :-10~60°C | |
Company Advantages
With high quality 7.4 v lithium polymer battery, WECODO has gained more popularity in global market. Our company has experienced and highly-skilled workers. Mistakes in production are far less likely to occur because these individuals have the best skills for the job that they do. The spirit of "customer-oriented" is the soul of our company's development. We strive to meet customer requirements by virtue of production technology and technical level that are prior to the industry.
If you have any questions, feel free to consult us.
Shenzhen WECODO Technology Co., Ltd., focus on R&D and provide best services in high energy and IT technology, having advanced producing bases and our own battery brand WECODO.
