Custom Lithium Ion Battery Packs -5~30℃ - - WECODO
Product details of the custom lithium ion battery packs
Quick Overview
custom lithium ion battery packs pursues best performance and perfect design. Our quality experts test this product on different parameters, so as to maintain the quality. It is estimated that the product has a long service life in the market.
Product Introduction
The custom lithium ion battery packs mainly promoted by WECODO have been further improved in the past through the technical improvement, which is reflected in the following aspects.
| Items | Specification | Remarks |

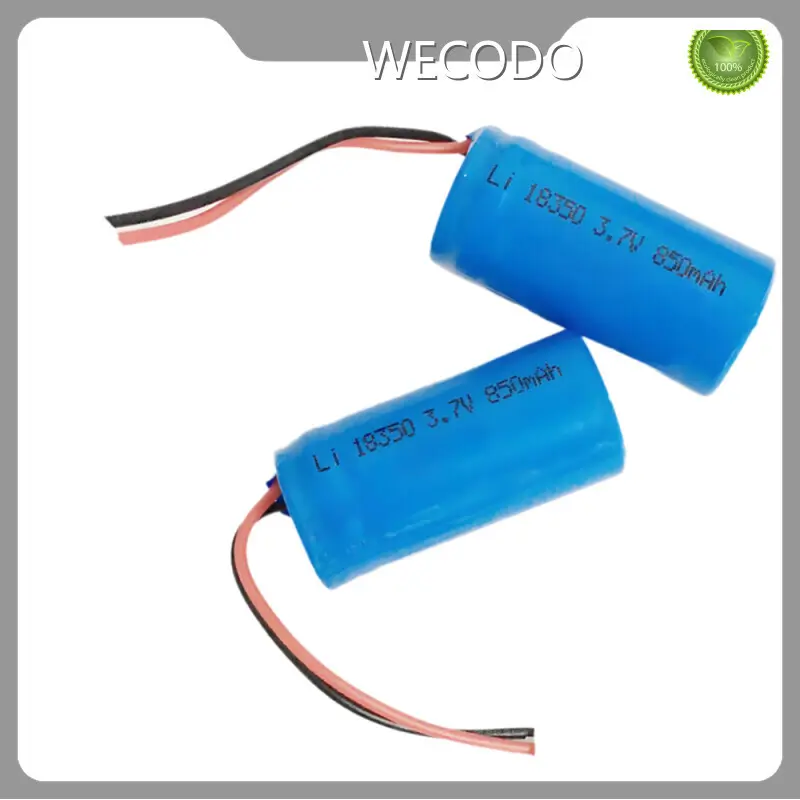

| Model | 18350 | |
| Rated voltage | 3.7V | At 2mA +20˚C |
| Rated capacity | 850mAh | 2mA +20˚C,2.0V |
| Standard charge | CC/CV,0.2C5A,4.2V | |
| Standard discharge | CC,0.2C5A,3.0V | |
| End-of-charge voltage | 4.2V | At +20˚C |
| End-of-charge current | 0.02C5A(at CV mode) | |
| End-of-discharge voltage | 3.0V | |
| Charging time | 8 hours | |
| Max constant discharge current | 850mA | At +20˚C |
| Max pulse discharge current | 1700mA | At +20˚C |
| Internal resistant | Max 180mW | |
| Storage temperature range | -5˚C~+35˚C | Max |
| Charging temperature range | 0˚C~+45˚C | |
| Discharging temperature range | -20˚C~+60˚C | |
| Size | 18.5*35.5mm | |
| Weight | 25.0g | |
| Customized Battery Pack | with PCM, 1S2P 1S3P 2S2P 2S4P | |
| We also supply Li 10440 Li14500 Li14650 Li16500 Li17500 Li17650 Li18350 Li18500 Li18650 | ||
