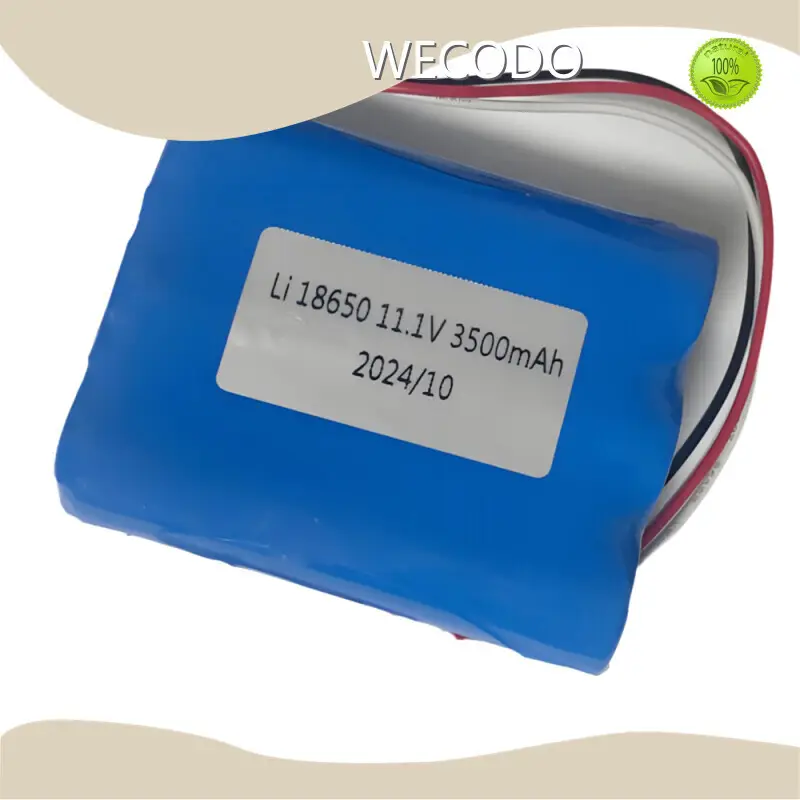

Custom Lithium Ion Battery Packs Charging: 0~45℃ Discharging:-20~60℃ by WECODO

Product details of the custom lithium ion battery packs

Quick Overview

WECODO custom lithium ion battery packs is developed by our R&D members who are talents with excellent professional skills. They care about each detail of the product according to the market research. The product is carefully examined to ensure its quality and durability. A closely spaced international sales network ensures qualified customer service of Shenzhen WECODO Technology Co., Ltd..

Product Introduction

WECODO's custom lithium ion battery packs has better quality than other products in the industry, which is specifically shown in the following aspects.

Items	Specification	Remarks
Model	18650
Rated voltage	11.1V
Rated capacity	3500mAh
Standard charge	CC/CV,0.2C5A,4.2V
Standard discharge	CC,0.2C5A,3.0V
End-of-charge voltage	12.6V
End-of-charge current	0.02C5A(at CV mode)
End-of-discharge voltage	9.0V
Charging time	8 hours
Max constant discharge current	3500mA	At +20˚C
Max pulse discharge current	10000mA	At +20˚C
Internal resistant	Max 180mW
Storage temperature range	-5˚C~+35˚C	Max
Charging temperature range	0˚C~+45˚C
Discharging temperature range	-20˚C~+60˚C
Size	18.5*57*71mm max
Weight	170.0g
Terminal	wires and connector, pins
We also supply Li 10440 Li14500 Li14650 Li16500 Li17500 Li17650 Li18350 Li18500 Li18650

Application Scenario

Portable Medical Equipment

Reliable power for medical devices.

Security Systems

Long-lasting energy for surveillance.

Emergency Locator Beacons

Dependable performance in emergencies.

High-Drain Devices

Extended use for power-hungry gadgets.

Company Introduction

Shenzhen WECODO Technology Co., Ltd. offers clients with a professional complete product solution from design, production, quality control to delivery of custom lithium ion battery packs. Our manufacturing plant is equipped with up-to-date production facilities. They are imported from the United States, Japan, and Germany, which ensure the smooth progress of our production plan. We are committed to preserving resources and materials as long as possible. Our goal is to stop contributing to landfills. By reusing, regenerating, and recycling products, we sustainably conserve our planet's resources.
We are committed to providing customers with quality products. We sincerely welcome customers with needs to contact us, and look forward to establishing a long-term friendly relation with you!
