Custom Made Lithium Batteries -5~30℃ - - WECODO

Product details of the custom made lithium batteries

Product Overview

WECODO custom made lithium batteries is carefully crafted using the latest techniques in compliance with industry standards. It is manufactured in an audited facility that meets rigorous quality standards. Our custom made lithium batteries has a wide range of applications and can be used in a variety of situations and scenarios. Specialized in R&D and production of custom made lithium batteries, Shenzhen WECODO Technology Co., Ltd. has overwhelming advantages to be reliable supplier.

Product Description

Compared with other products in the same category, custom made lithium batteries has outstanding advantages which are mainly reflected in the following points.

Items	Parameters	Remarks

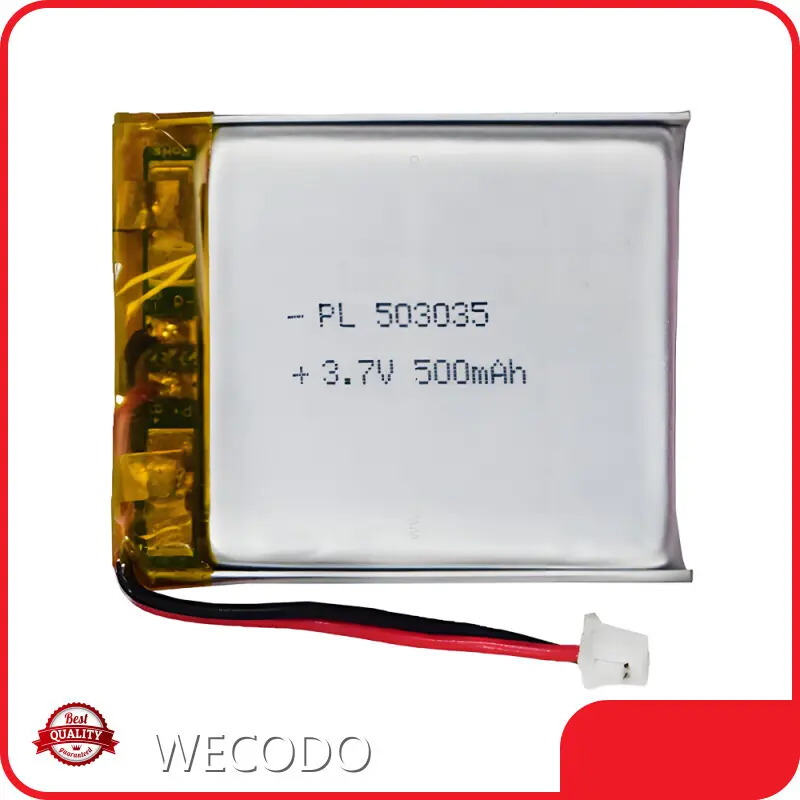

Model	PL503035
Rated Capacity	500 mnAh	0.2C discharge
Cell Weight	about 15g
Cell Initial Impedance	≤ 80 mΩ	3.7V AC 1KHz measured
Normal Voltage	3.7 V
Initial Voltage	3.75V~3.95V
Limited Charge Voltage	4.2 V	Voltage of cc charge to cV charge
Standard Charging Method	0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C
Cut-off Voltage	2.75 V	Load Voltage when discharge ended
Standard Charging Current	500 mA (0.2C)
Standard Charging Time	6~7 hours	CC charge to 4.2 V, then CV charge till current declines to less than 0.01C
Rapid charging Current	500 mA (1.0C)
Rapid Charging Time	2-3 hours
Standard Discharging Current	100 mA (0.2C)	CC discharge to 2.75 V
Max. Discharging Current	500 mA (1.0C)	CC discharge to 2.75 V
Cell Dimension	T*W*H: 5.0*30.5*35.5 mm
Operating Temperature	Charging :0~45°C, Discharging :-10~60°C

Company Advantages

Shenzhen WECODO Technology Co., Ltd. mainly produces Rechargeable Lithium Battery,Primary Lithium Battery,Battery Related. The location is in shen zhen. WECODO is committed to becoming a first-class enterprise with industry influence. In the future, it will be our pleasure to contribute to a better life and harmonious society. Our company attaches great importance to the cultivation and management of talents. According to the requirements for development, we have established excellent teams in R&D, quality inspection, technology, marketing and others. Based on customers' specific situations and needs, WECODO provides comprehensive and reasonable solutions.
Our products are of excellent quality and favorable price, please feel free to contact us for quotation!
