Leading Lithium Battery Companies Charging: 0 ～ 45℃; Discharge: -10 ～ 60℃ by WECODO-1

Product details of the leading lithium battery companies

Quick Detail

WECODO leading lithium battery companies is delicately crafted by our adept professionals by using modern technology. Our quality management system ensures that the product meets with the international quality standards. leading lithium battery companies can be applied to different industries, fields and scenes. This product has been improved by our personnel who have thorough knowledge and experience in their related field.

Product Introduction

Compared with similar products, our leading lithium battery companies is provided with the following competitive advantages.

Items	Parameters	Remarks

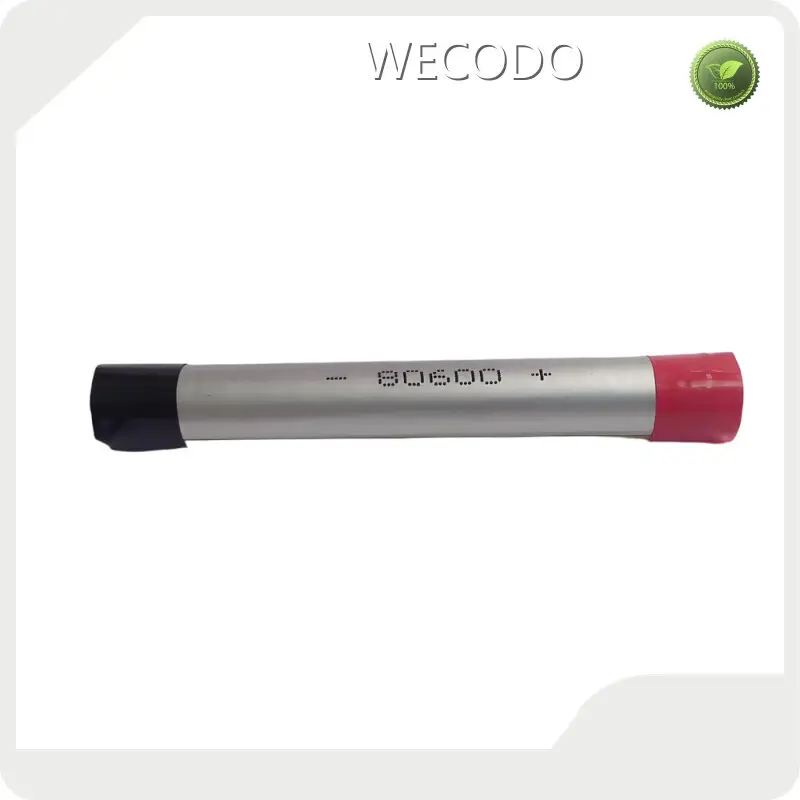

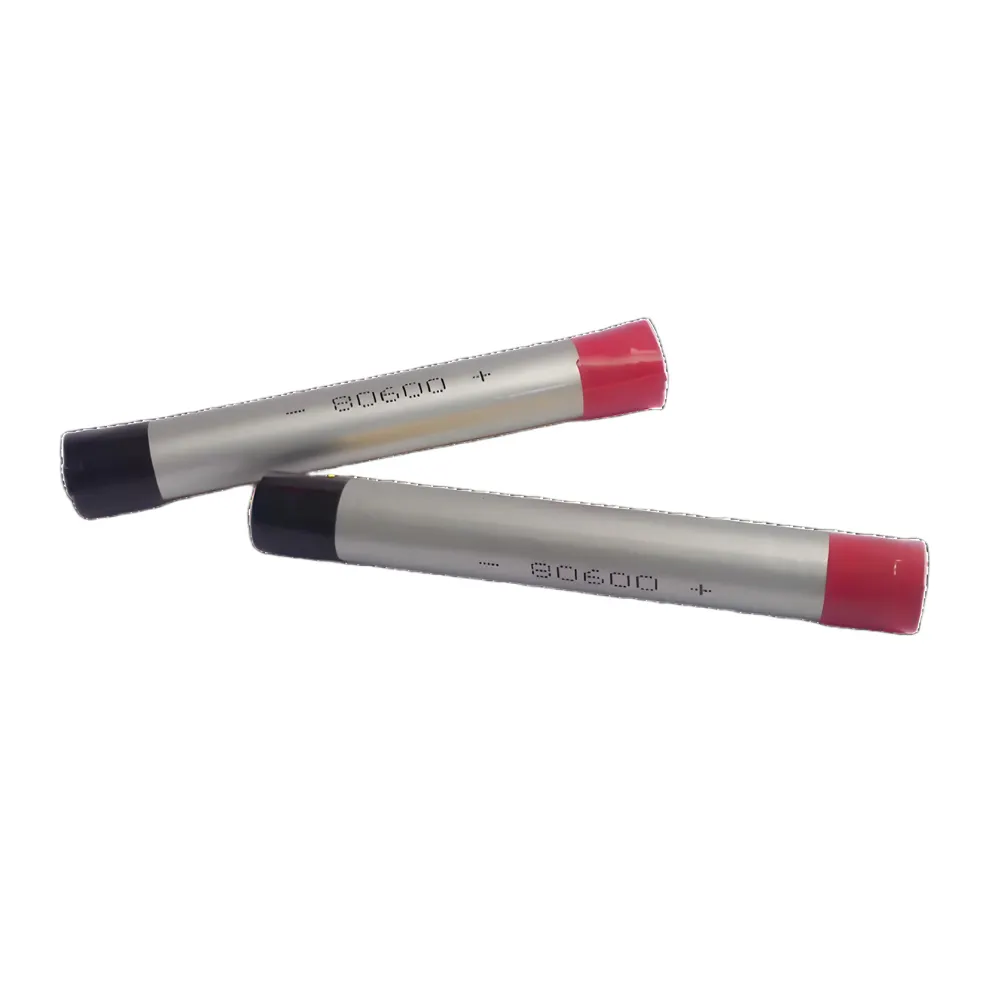

Model	PL80600
Rated Capacity	270 mAh	0.5C discharge
Cell Weight	about 5.3g
Cell Initial Impedance	≤ 80 mΩ	3.7V AC 1KHz measured
Normal Voltage	3.7 V
Initial Voltage	3.75V~3.95V
Limited Charge Voltage	4.2 V	Voltage of cc charge to cV charge
Standard Charging Method	0.5C CC current charge to 4.2V, then CV charge till current declines to 0.05C
Cut-off Voltage	3.0 V	Load Voltage when discharge ended
Standard Charging Current	135 mA (0.5C)
Standard Charging Time	3 hours	0.5C CC charge to 4.2 V, then CV charge till current declines to less than 0.05C
Rapid charging Current	270 mA (1.0C)
Rapid Charging Time	2 hours
Cell Dimension	Length: 60mm Max (not including tabs), Dia 8.0mm Max
Standard Discharging Current	135 mA (0.2C)	CC discharge to 2.75 V
Max. Discharging Current	1620 mA (1.0C)	CC discharge to 2.75 V
Operating Temperature	Charging :0~45°C, Discharging :-10~60°C
