Leading Lithium Battery Companies Charging: 0 ～ 45℃; Discharge: -10 ～ 60℃ by WECODO
Company Advantages
· The simple and unique design makes our leading lithium battery companies easy to handle and convenient to use.
· This product has superior quality making them compatible and versatile for the industry.
· Shenzhen WECODO Technology Co., Ltd. has so far taken its place in the international leading lithium battery companies market.
| Items | Parameters | Remarks |

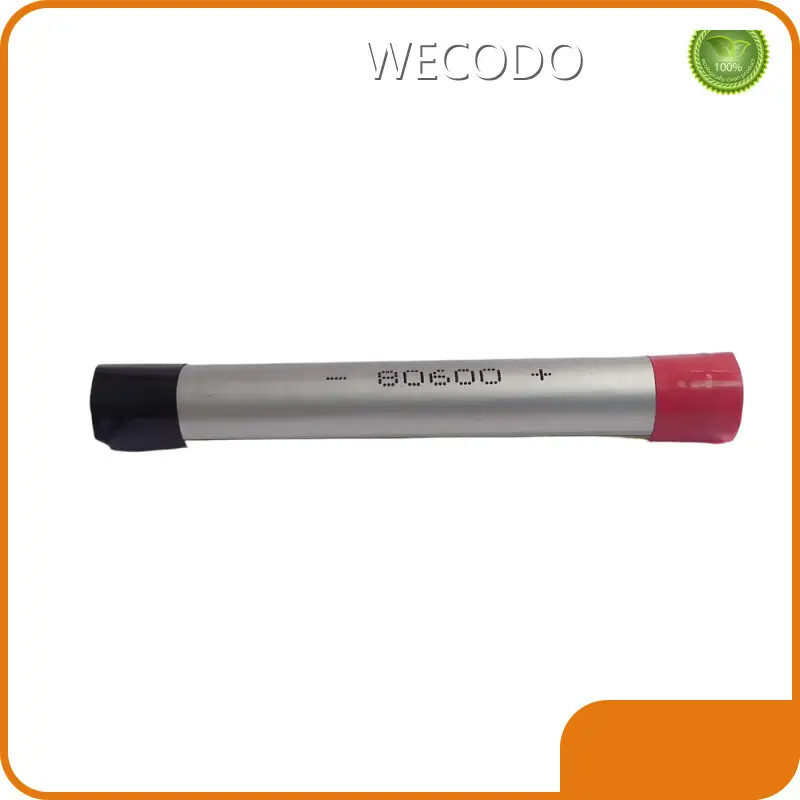

| Model | PL80600 | |
| Rated Capacity | 270 mAh | 0.5C discharge |
| Cell Weight | about 5.3g | |
| Cell Initial Impedance | ≤ 80 mΩ | 3.7V AC 1KHz measured |
| Normal Voltage | 3.7 V | |
| Initial Voltage | 3.75V~3.95V | |
| Limited Charge Voltage | 4.2 V | Voltage of cc charge to cV charge |
| Standard Charging Method | 0.5C CC current charge to 4.2V, then CV charge till current declines to 0.05C | |
| Cut-off Voltage | 3.0 V | Load Voltage when discharge ended |
| Standard Charging Current | 135 mA (0.5C) | |
| Standard Charging Time | 3 hours | 0.5C CC charge to 4.2 V, then CV charge till current declines to less than 0.05C |
| Rapid charging Current | 270 mA (1.0C) | |
| Rapid Charging Time | 2 hours | |
| Cell Dimension | Length: 60mm Max (not including tabs), Dia 8.0mm Max | |
| Standard Discharging Current | 135 mA (0.2C) | CC discharge to 2.75 V |
| Max. Discharging Current | 1620 mA (1.0C) | CC discharge to 2.75 V |
| Operating Temperature | Charging :0~45°C, Discharging :-10~60°C | |
Company Features
· Shenzhen WECODO Technology Co., Ltd. acts as a critical role in providing high-quality leading lithium battery companies in both the domestic and international market.
· We are proud of our extensive sales network. With a commercial footprint in many world markets, our key regions include the APAC regions and emerging markets in the CEE.
· We have been committed to environmental protection and sustainable development. During production, we do our best to reduce the negative impact, such as treating waste scientifically and reducing resources waste.
Product Details
More detailed information about leading lithium battery companies will be shown below for you.
Application of the Product
Our leading lithium battery companies is widely used.
WECODO has many years of industry experience and strong production strength. According to different needs of customers, we are able to provide customers with excellent and efficient one-stop solutions.
Product Comparison
Compared with peer products, our company's leading lithium battery companies has the following characteristics.
Shenzhen WECODO Technology Co., Ltd., focus on R&D and provide best services in high energy and IT technology, having advanced producing bases and our own battery brand WECODO.
