Lithium Battery Manufacturing Companies 4.2V - - WECODO
Product details of the lithium battery manufacturing companies
Quick Overview
Shenzhen WECODO Technology Co., Ltd. hires a professional team of designers to design the outline of lithium battery manufacturing companies. We conduct a variety of rigorous tests to ensure that our products are defect free and meet high quality standards. WECODO's lithium battery manufacturing companies is widely used in various scenes. Shenzhen WECODO Technology Co., Ltd. is reliable among customers for quality and product service.
Product Introduction
WECODO's technical level is higher than its peers. Compared with peer products, the lithium battery manufacturing companies produced by us has the following highlights.
| Items | Parameters | Remarks |

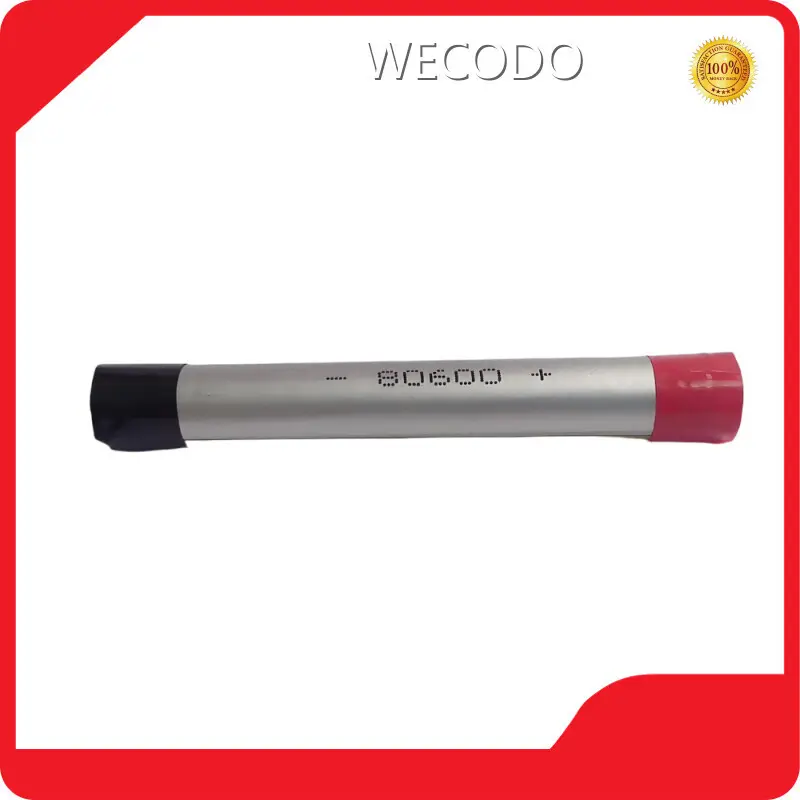

| Model | PL80600 | |
| Rated Capacity | 270 mAh | 0.5C discharge |
| Cell Weight | about 5.3g | |
| Cell Initial Impedance | ≤ 80 mΩ | 3.7V AC 1KHz measured |
| Normal Voltage | 3.7 V | |
| Initial Voltage | 3.75V~3.95V | |
| Limited Charge Voltage | 4.2 V | Voltage of cc charge to cV charge |
| Standard Charging Method | 0.5C CC current charge to 4.2V, then CV charge till current declines to 0.05C | |
| Cut-off Voltage | 3.0 V | Load Voltage when discharge ended |
| Standard Charging Current | 135 mA (0.5C) | |
| Standard Charging Time | 3 hours | 0.5C CC charge to 4.2 V, then CV charge till current declines to less than 0.05C |
| Rapid charging Current | 270 mA (1.0C) | |
| Rapid Charging Time | 2 hours | |
| Cell Dimension | Length: 60mm Max (not including tabs), Dia 8.0mm Max | |
| Standard Discharging Current | 135 mA (0.2C) | CC discharge to 2.75 V |
| Max. Discharging Current | 1620 mA (1.0C) | CC discharge to 2.75 V |
| Operating Temperature | Charging :0~45°C, Discharging :-10~60°C | |
Company Advantages
As a comprehensive company in the industry, Shenzhen WECODO Technology Co., Ltd. (WECODO) is engaged in the production, processing and sales. Its key products include Rechargeable Lithium Battery,Primary Lithium Battery,Battery Related. With the tenet of 'serving customers, adding value for customers', WECODO pays great attention to customers and tries our best to provide them with better products and more professional technical services. Our company has widely recruited talents to form a high-level talent team. Our team members are highly-educated and excellent. WECODO always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
Friends from all walks of life are warmly welcomed to inquire and negotiate cooperation!
Shenzhen WECODO Technology Co., Ltd., focus on R&D and provide best services in high energy and IT technology, having advanced producing bases and our own battery brand WECODO.
