Lithium Coin - - WECODO

Product details of the lithium coin

Quick Overview

The main components of lithium coin are imported products. It has reliable quality and stable performance. Our lithium coin is widely used in industry. WECODO is a development and production of lithium coin company with strong strength.

Product Introduction

Compared with similar products, the lithium coin of WECODO is more strict in the selection of raw materials. The specific aspects are as follows.

ITEM		UNIT	SPECIFICATIONS	CONDITIONS

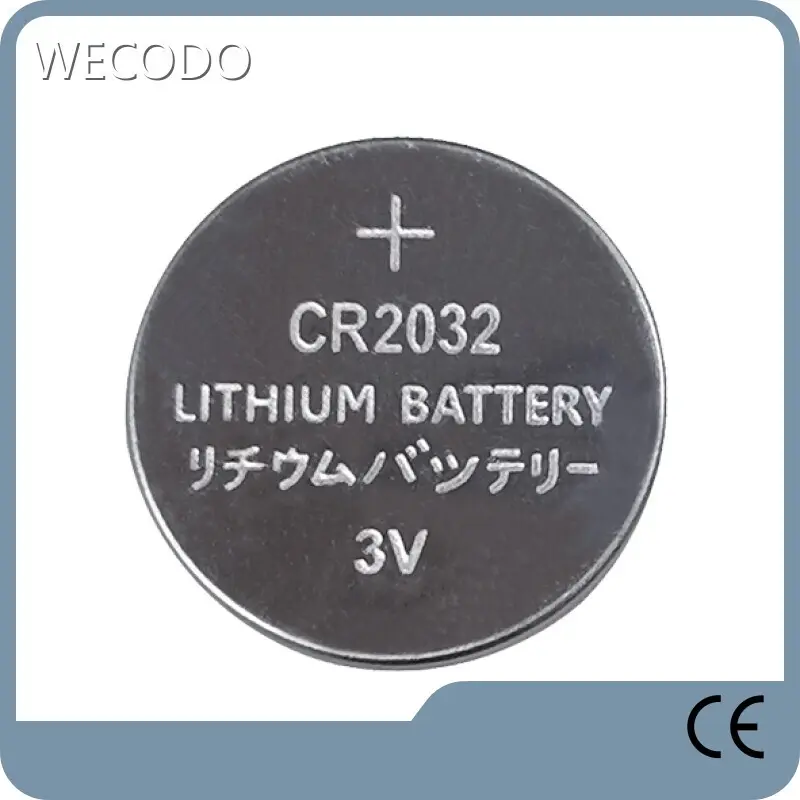

Model			CR2032
Nominal voltage		V	3
Nominal capacity		mAh	210	Standard discharge with load 15kΩ
Instantaneous short–circuit current		mA	≥120	Time≤0.5 second
Off-load voltage		V	≥3.2	Without load
Operating temperature		℃	-20~60
Standard weight		g	~2.75	Unit cell
Discharge capacity	Initial	Standard	1180 hours	Continuous discharge with load 15kΩ, till 2.0v end-voltage
	After 12 months storage	Standard	1110 hours
Red LED light flash test		times	≥500,000	Pulse discharge with red LED light, flash each 1.5 seconds till 1.6v end-voltage
Blue LED light flash test		times	≥2,000,000	Pulse discharge with blue LED light, flash each 1.5 seconds till 2.0v end-voltage

ITEM	CONDITIONS	CHARACTERISTICS
Thermal durability	Storage for 20 days at 50℃±3℃, then continuously discharge with 15kΩ load till 2.0v end-voltage	Standard	1110 hours
Self-discharge rate	Storage for 12 months at normal temperature and humidity	≤1%

Company Advantages

Shenzhen WECODO Technology Co., Ltd. is a global high-quality lithium coin manufacturing enterprise integrating R&D, production, sales and service. Shenzhen WECODO Technology Co., Ltd. has successfully applied for technology patents for lithium coin. Our company is one of the largest and most influential manufacturers in the lithium coin industry. Inquire online!
Welcome new and old customers to negotiate business.
