Lithium Ion Battery Supplier 1100mA - - WECODO

Product details of the lithium ion battery supplier

Product Description

The attractive appearance of WECODO lithium ion battery supplier is designed by our professional designers. The quality control process prevents the defects of this product from evading detection. This product finds its application in varied areas.

Items	Specification	Remarks

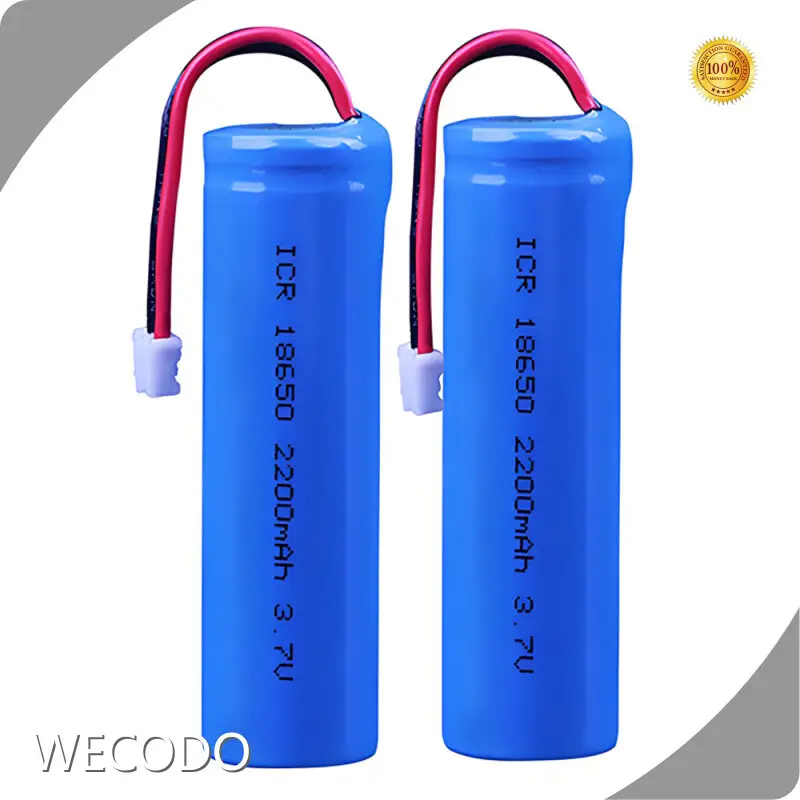

Model	18650
Rated voltage	3.7V
Rated capacity	2200mAh
Standard charge	CC/CV,0.2C5A,4.2V
Standard discharge	CC,0.2C5A,3.0V
End-of-charge voltage	4.2V
End-of-charge current	0.02C5A(at CV mode)
End-of-discharge voltage	3.0V
Charging time	8 hours
Max constant discharge current	1100mA	At +20˚C
Max pulse discharge current	2200mA	At +20˚C
Internal resistant	Max 180mW
Storage temperature range	-5˚C~+35˚C	Max
Charging temperature range	0˚C~+45˚C
Discharging temperature range	-20˚C~+60˚C
Size	18.5*65.5mm max
Weight	55.0g
Terminal	wires and connector, pins
We also supply Li 10440 Li14500 Li14650 Li16500 Li17500 Li17650 Li18350 Li18500 Li18650

Application Scenario

Portable Medical Equipment

Reliable power for medical devices.

Security Systems

Long-lasting energy for surveillance.

Emergency Locator Beacons

Dependable performance in emergencies.

High-Drain Devices

Extended use for power-hungry gadgets.
