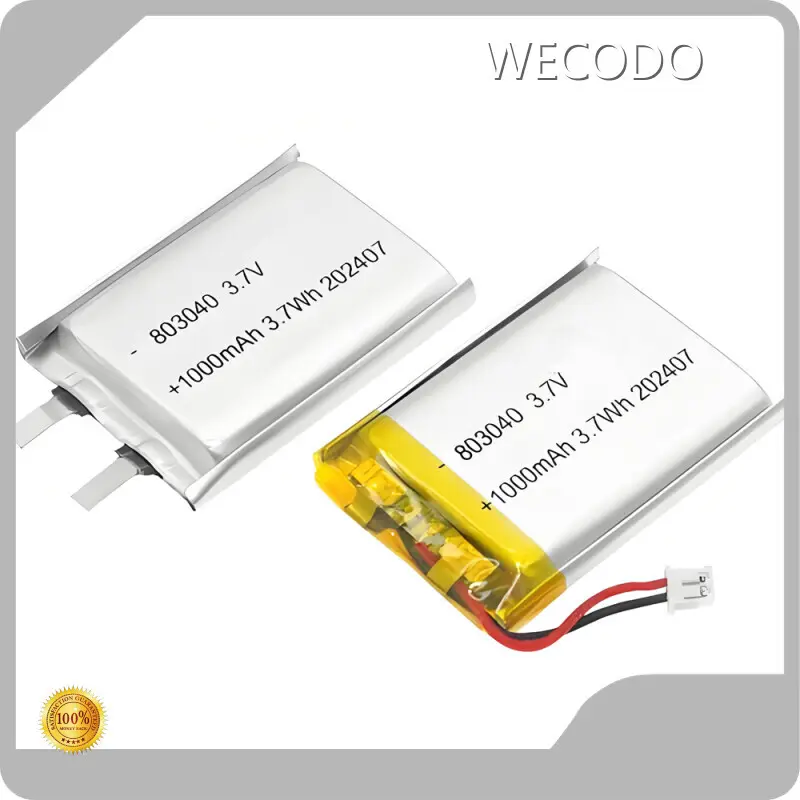

Lithium Ion Polymer Battery Pack by WECODO

Product details of the lithium ion polymer battery pack

Product Introduction

This lithium ion polymer battery pack is developed using premium quality material in compliance with the international quality standards. The product meets high-quality standards and has already obtained international certification. Putting customer service foremost is conducive to the popularity of lithium ion polymer battery pack.

Items	Specification	Remarks
Model	PL803040
Rated voltage	3.7V	At 2mA +20˚C
Rated capacity	1000mAh	2mA +20˚C,2.0V
Initial cell impedance	≤ 30 mΩ
Initial Voltage	3.75V-3.95V	At +20˚C
Limited Charge Voltage	4.2V	CC to CV
Cut-off Voltage	2.75V
Standard charge current	200mA
Standard charge time	6-7 hours
Rapid charge current	1000mA
Rapid charge time	2-3 hours
Standard discharge current	200mA
Max pulse discharge current	1000mA
Storage temperature range	15˚C~+35˚C	recommend
Operating temperature range	charging: 0˚C~+45˚C discharging: -10˚C~+60˚C
Size	Thickness: 8mm Width: 30mm Length: 42mm
Weight	20.0g

Application Scenario

Portable Medical Equipment

Reliable power for medical devices.

Security Systems

Long-lasting energy for surveillance.

Emergency Locator Beacons

Dependable performance in emergencies.

High-Drain Devices

Extended use for power-hungry gadgets.

Company Feature

• WECODO is located in a place with traffic convenience. This facilitates the transportation of products and guarantees the timely supply of products.
• Over years since the inception in our company has been constantly tested by the outside world. We have seized the opportunity and spared every effort to make breakthroughs. At present, we have an important position in the market.
• WECODO pays attention to talents management and cooperation. We have a high-quality and highly-educated elite team.
WECODO runs the business in good faith. We produce and sell Rechargeable Lithium Battery,Primary Lithium Battery,Battery Related directly from the factory at a favorable price. If you are interested, please contact us to order.
