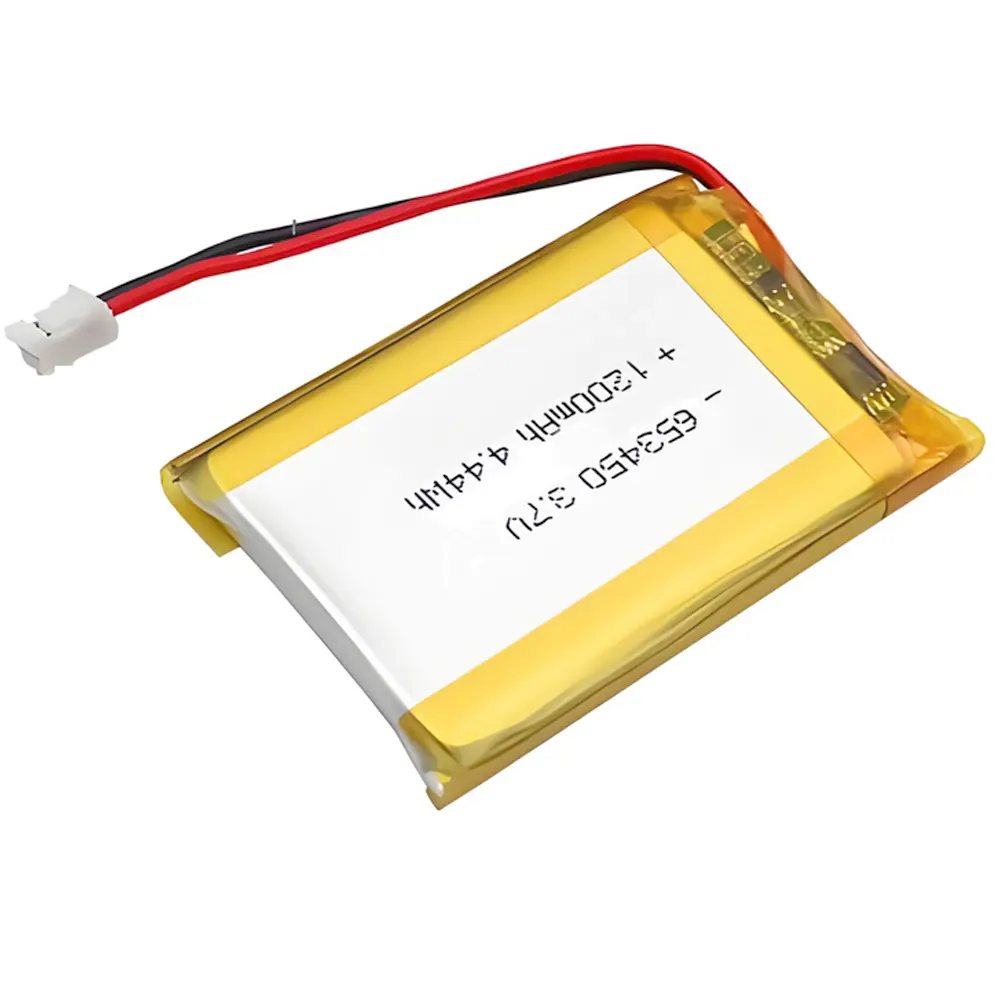

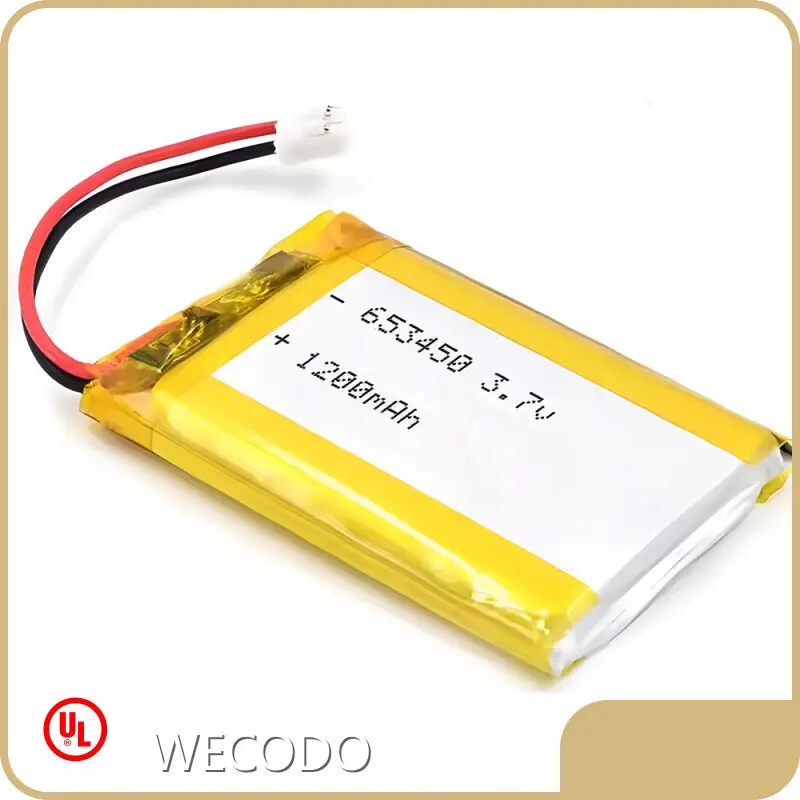

Lithium Polymer Battery Pack by WECODO
Product details of the lithium polymer battery pack
Quick Detail
WECODO lithium polymer battery pack is made as per the international quality standards. It is widely admitted that WECODO's increasing fame contributes to lithium polymer battery pack. Shenzhen WECODO Technology Co., Ltd. puts great importance to quality of lithium polymer battery pack and pack them with solid wooden pallets.
Product Introduction
Compared with the products in the market, the lithium polymer battery pack produced by our company has the following advantages.
| Items | Specification | Remarks |
| Model | PL653450 | |
| Rated voltage | 3.7V | At 2mA +20˚C |
| Rated capacity | 1200mAh | 2mA +20˚C,2.0V |
| Initial cell impedance | ≤ 30 mΩ | |
| Initial Voltage | 3.75V-3.95V | At +20˚C |
| Limited Charge Voltage | 4.2V | CC to CV |
| Cut-off Voltage | 2.75V | |
| Standard charge current | 240mA | |
| Standard charge time | 6-7 hours | |
| Rapid charge current | 1200mA | |
| Rapid charge time | 2-3 hours | |
| Standard discharge current | 240mA | |
| Max pulse discharge current | 1200mA | |
| Storage temperature range | 15˚C~+35˚C | recommend |
| Operating temperature range |
charging: 0˚C~+45˚C discharging: -10˚C~+60˚C |
|
| Size |
Thickness: 6.5mm Width: 34mm Length: 52mm |
|
| Weight | 20.0g |
Company Introduction
Shenzhen WECODO Technology Co., Ltd. is a comprehensive enterprise integrating production, research and development, and sales. Our products mainly cover Rechargeable Lithium Battery,Primary Lithium Battery,Battery Related. WECODO always strives for modern brand building and constant innovation and development. We promote sustainable development of production in the industry by establishing long-term management mechanism. WECODO has a dedicated and diligent senior management team and a large number of professional technical personnel. All this makes favorable conditions for company development. In addition to providing high-quality products, we also provide effective solutions based on the actual conditions and the needs of different customers.
You are always welcomed for inquiry.
