Polymer Rechargeable Battery 500mAh - - WECODO

Company Advantages

· WECODO polymer rechargeable battery has been paid 100% attention from the internal structure to the appearance.

· It meets the client’s requirement in every term of quality and durability.

· The product plays an important role in the marketplace through a huge sales network.

Items	Parameters	Remarks

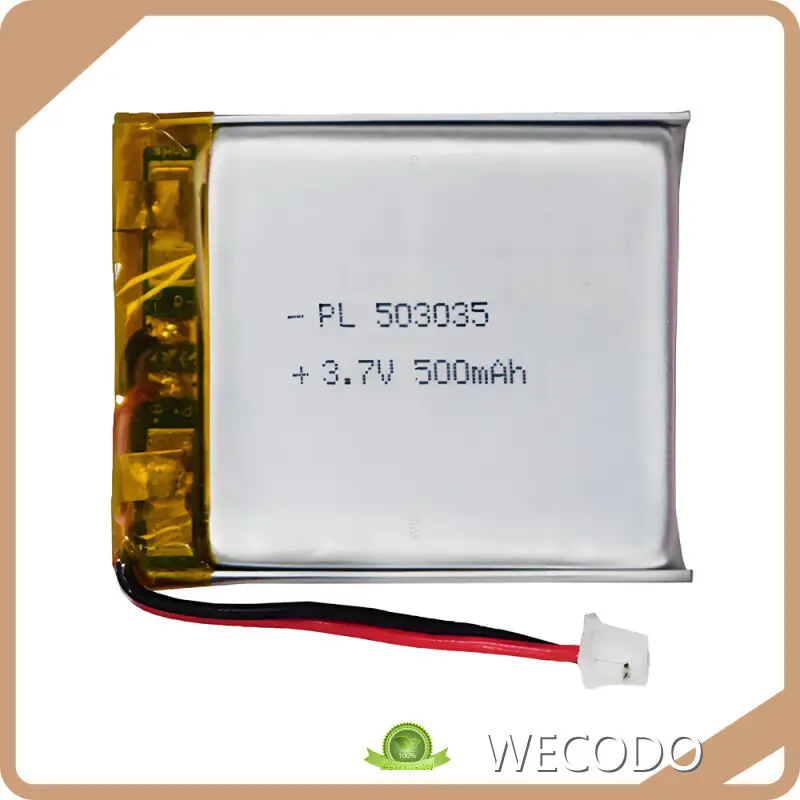

Model	PL503035
Rated Capacity	500 mnAh	0.2C discharge
Cell Weight	about 15g
Cell Initial Impedance	≤ 80 mΩ	3.7V AC 1KHz measured
Normal Voltage	3.7 V
Initial Voltage	3.75V~3.95V
Limited Charge Voltage	4.2 V	Voltage of cc charge to cV charge
Standard Charging Method	0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C
Cut-off Voltage	2.75 V	Load Voltage when discharge ended
Standard Charging Current	500 mA (0.2C)
Standard Charging Time	6~7 hours	CC charge to 4.2 V, then CV charge till current declines to less than 0.01C
Rapid charging Current	500 mA (1.0C)
Rapid Charging Time	2-3 hours
Standard Discharging Current	100 mA (0.2C)	CC discharge to 2.75 V
Max. Discharging Current	500 mA (1.0C)	CC discharge to 2.75 V
Cell Dimension	T*W*H: 5.0*30.5*35.5 mm
Operating Temperature	Charging :0~45°C, Discharging :-10~60°C

Company Features

· As a reliable manufacturer, Shenzhen WECODO Technology Co., Ltd. has been focusing on the quality of polymer rechargeable battery.

· polymer rechargeable battery has won the praise of customers with its highest quality.

· In this prospering society, WECODO aims to be a better company in the field of polymer rechargeable battery. Ask online!

Product Comparison

Compared with products in the same category, polymer rechargeable battery's core competencies are mainly reflected in the following aspects.
