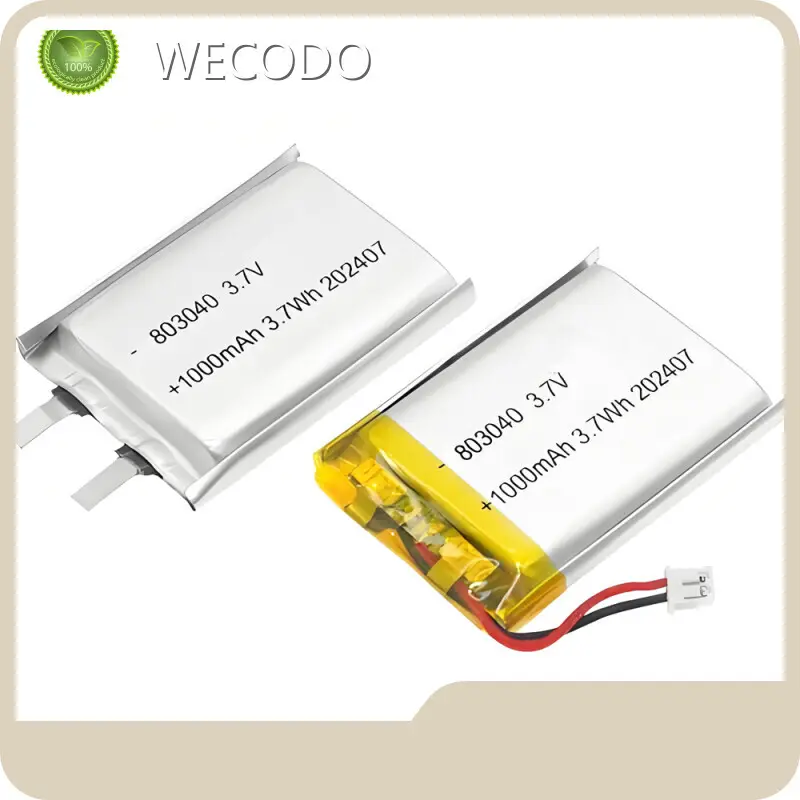

Rechargeable Battery Lithium Polymer by WECODO

Items	Specification	Remarks
Model	PL803040
Rated voltage	3.7V	At 2mA +20˚C
Rated capacity	1000mAh	2mA +20˚C,2.0V
Initial cell impedance	≤ 30 mΩ
Initial Voltage	3.75V-3.95V	At +20˚C
Limited Charge Voltage	4.2V	CC to CV
Cut-off Voltage	2.75V
Standard charge current	200mA
Standard charge time	6-7 hours
Rapid charge current	1000mA
Rapid charge time	2-3 hours
Standard discharge current	200mA
Max pulse discharge current	1000mA
Storage temperature range	15˚C~+35˚C	recommend
Operating temperature range	charging: 0˚C~+45˚C discharging: -10˚C~+60˚C
Size	Thickness: 8mm Width: 30mm Length: 42mm
Weight	20.0g

Application Scenario

Portable Medical Equipment

Reliable power for medical devices.

Security Systems

Long-lasting energy for surveillance.

Emergency Locator Beacons

Dependable performance in emergencies.

High-Drain Devices

Extended use for power-hungry gadgets.

Company Advantages

· WECODO rechargeable battery lithium polymer is manufactured leveraging on our in-depth technical expertise.

· The product has been internationally approved in terms of performance and quality.

· This product has many of the above advantages and has broad application prospects.

Company Features

· Shenzhen WECODO Technology Co., Ltd. has been engaging in the design and manufacture of rechargeable battery lithium polymer. We have been regarded as a reliable producer in the industry.

· WECODO is equipped with high technology to guarantee the quality of rechargeable battery lithium polymer.

· We insist on sustainability. To promote safe, secure and sustainable living and working environments, we always apply science-based safety manufacturing.

Application of the Product

The rechargeable battery lithium polymer produced by WECODO is widely used in industry.

With a focus on Rechargeable Lithium Battery,Primary Lithium Battery,Battery Related, WECODO is dedicated to providing reasonable solutions for customers.
