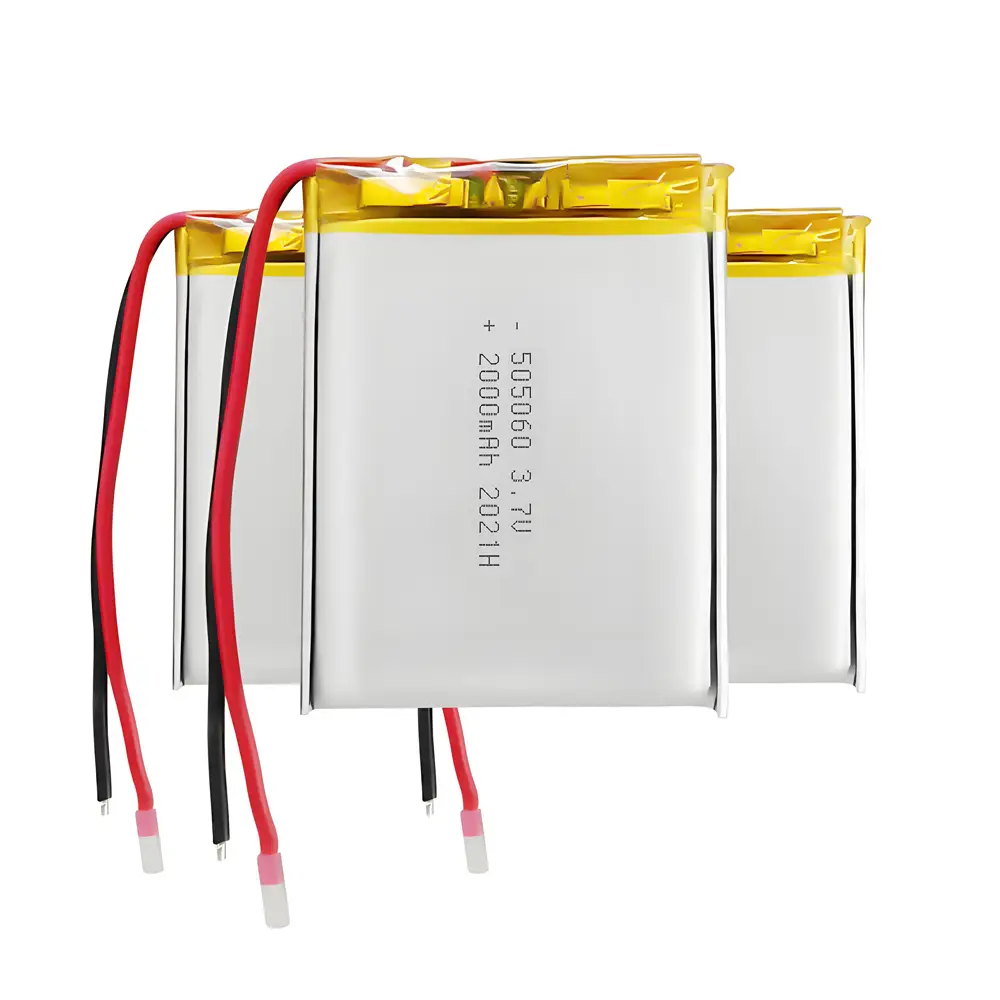

PL505060 Lithium Polymer Battery 3.7V 7.4V 11.1V 2000mAh Rechargeable Battery for Smart Devices
5.0
Standard weight:
35g
Nominal capacity:
2000mAh
Open circuit voltage:
4.2V
Nominal voltage:
3.7V
Max. continuous current:
1000mA
Typical max. pulse current:
2000mA
Storage:
-5~30℃
Operating temperature range:
charging: 0 ～ 45℃; discharge: -10 ～ 60℃
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Items | Specification | Remarks |
| Model |
PL505060 | |
| Rated voltage | 3.7V | |
| Rated capacity | 2000mAh | 0.2C discharge |
| Initial cell impedance | ≤ 30 mΩ |
3.7V AC 1KHz measured |
| Initial Voltage | 3.75V-3.95V | At +20˚C |
| Limited Charge Voltage | 4.2V | CC to CV |
| Cut-off Voltage | 2.75V | Load Voltage when discharge ended |
| Standard charge current |
400mA | |
| Standard charge time | 6-7 hours | |
| Rapid charge current | 2000mA | |
| Rapid charge time | 2-3 hours | |
| Standard discharge current | 400mA | CC discharge to 2.75 V |
| Max pulse discharge current | 2000mA | CC discharge to 2.75 V |
| Storage temperature range | 15˚C~+35˚C | recommend |
| Operating temperature range |
charging: 0˚C~+45˚C |
discharging: -10˚C~+60˚C |
| Size |
Thickness: 5mm |
Width: 50mm Length: 62mm |
| Weight | 40.0g |
