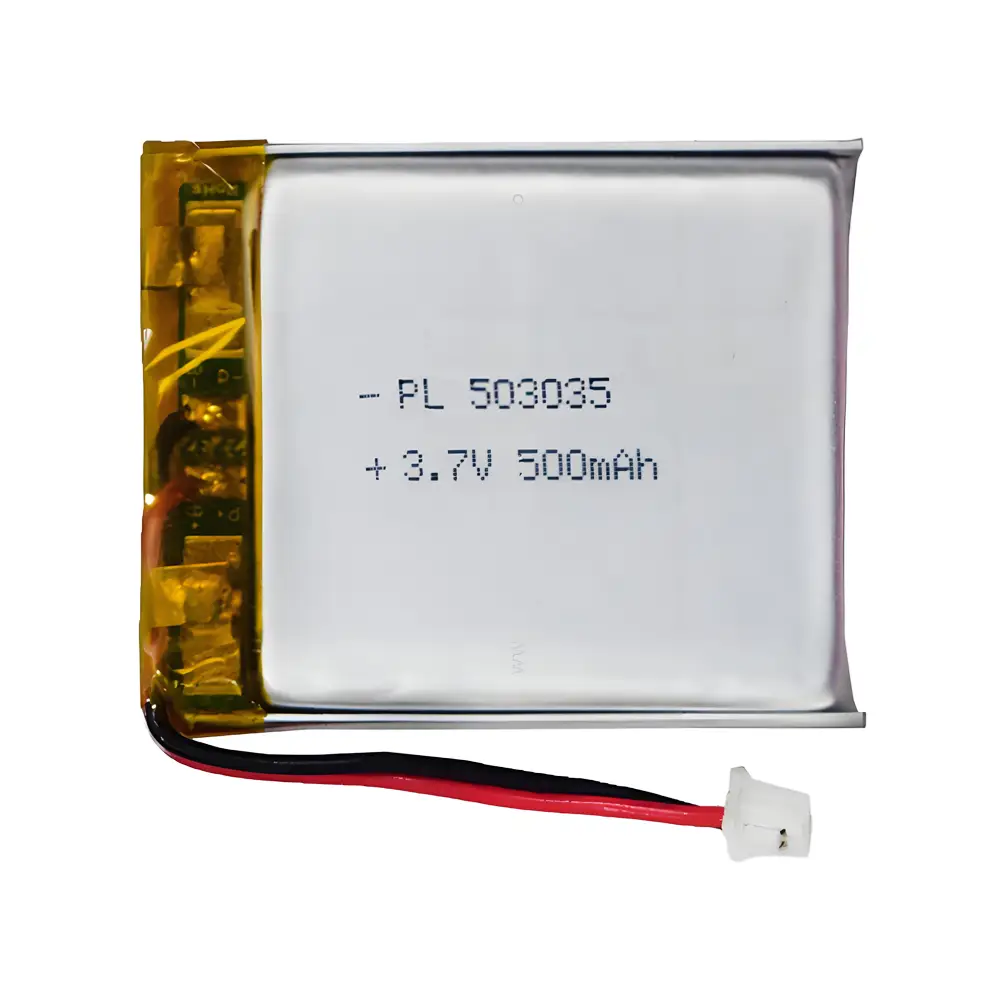

Lithium Polymer Battery 503035 603035 903035 3.7V 7.4V 11.1V for Smart Portable Devices
5.0
Standard weight:
8.0g
Nominal capacity:
500mAh
Open circuit voltage:
4.2V
Nominal voltage:
3.7V
Max. continuous current:
500mA
Storage:
-5~30℃
Operating temperature range:
charging: 0 ～ 45℃; discharge: -10 ～ 60℃
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
View size guide
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Items | Parameters | Remarks |
| Model | PL503035 | |
| Rated Capacity | 500 mnAh | 0.2C discharge |
| Cell Weight | about 15g | |
| Cell Initial Impedance | ≤ 80 mΩ | 3.7V AC 1KHz measured |
| Normal Voltage | 3.7 V | |
| Initial Voltage | 3.75V~3.95V | |
| Limited Charge Voltage | 4.2 V | Voltage of cc charge to cV charge |
| Standard Charging Method | 0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C | |
| Cut-off Voltage | 2.75 V | Load Voltage when discharge ended |
| Standard Charging Current | 500 mA (0.2C) | |
| Standard Charging Time | 6~7 hours | CC charge to 4.2 V, then CV charge till current declines to less than 0.01C |
| Rapid charging Current | 500 mA (1.0C) | |
| Rapid Charging Time | 2-3 hours | |
| Standard Discharging Current | 100 mA (0.2C) | CC discharge to 2.75 V |
| Max. Discharging Current | 500 mA (1.0C) | CC discharge to 2.75 V |
| Cell Dimension |
T*W*H: 5.0*30.5*35.5 mm |
|
| Operating Temperature | Charging :0~45°C, Discharging :-10~60°C | |
