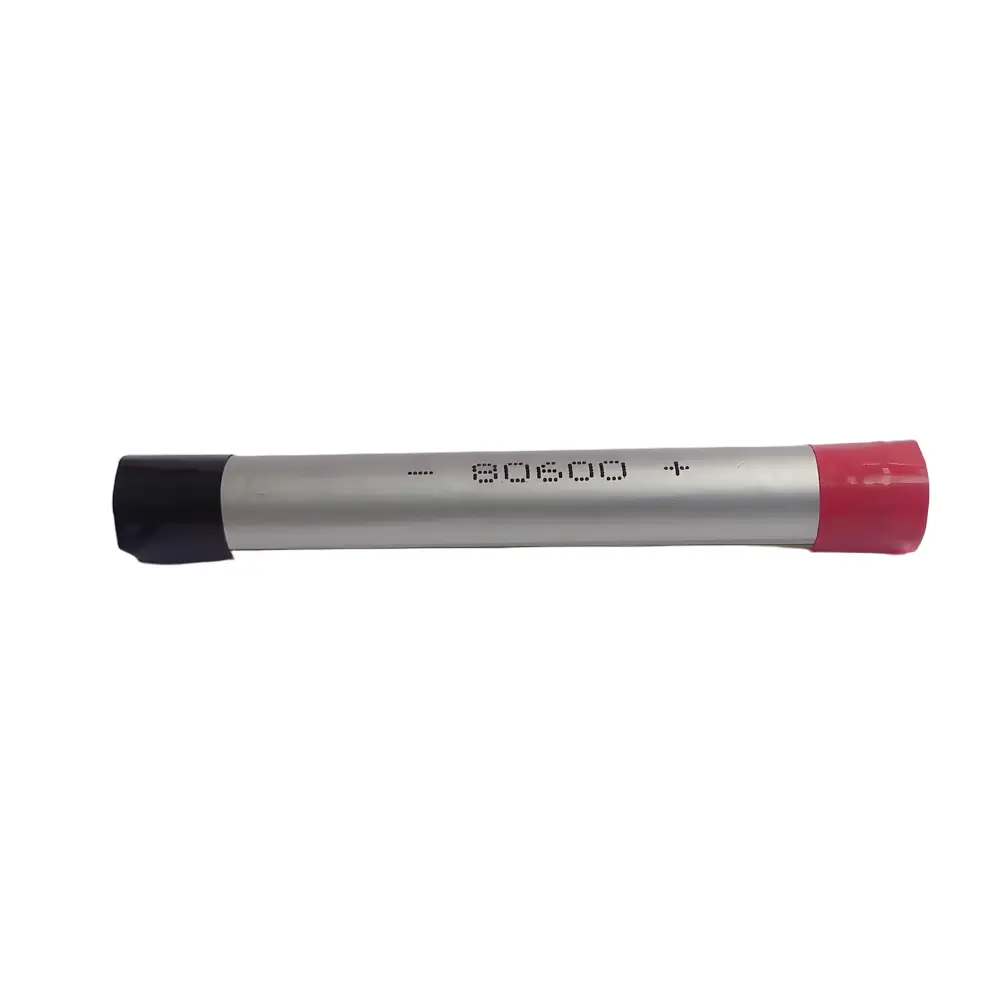

Lithium Polymer Battery 80600 80500 80400 3.7V for E-cigar
5.0
Standard weight:
5.3g
Nominal capacity:
270mAh
Open circuit voltage:
4.2V
Nominal voltage:
3.7V
Max. continuous current:
1620mA
Storage:
-5~30℃
Operating temperature range:
charging: 0 ～ 45℃; discharge: -10 ～ 60℃
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Items | Parameters | Remarks |
| Model | PL80600 | |
| Rated Capacity | 270 mAh | 0.5C discharge |
| Cell Weight | about 5.3g | |
| Cell Initial Impedance | ≤ 80 mΩ | 3.7V AC 1KHz measured |
| Normal Voltage | 3.7 V | |
| Initial Voltage | 3.75V~3.95V | |
| Limited Charge Voltage | 4.2 V | Voltage of cc charge to cV charge |
| Standard Charging Method | 0.5C CC current charge to 4.2V, then CV charge till current declines to 0.05C | |
| Cut-off Voltage | 3.0 V | Load Voltage when discharge ended |
| Standard Charging Current | 135 mA (0.5C) | |
| Standard Charging Time | 3 hours | 0.5C CC charge to 4.2 V, then CV charge till current declines to less than 0.05C |
| Rapid charging Current | 270 mA (1.0C) | |
| Rapid Charging Time | 2 hours | |
| Cell Dimension |
Length: 60mm Max (not including tabs), Dia 8.0mm Max |
|
| Standard Discharging Current | 135 mA (0.2C) | CC discharge to 2.75 V |
| Max. Discharging Current | 1620 mA (1.0C) | CC discharge to 2.75 V |
| Operating Temperature | Charging :0~45°C, Discharging :-10~60°C | |
