123a Lithium Manganese Dioxide Batteries by WECODO-1

Product details of the 123a lithium manganese dioxide batteries

Product Information

The raw material used in WECODO 123a lithium manganese dioxide batteries is procured from some of the reliable vendors. Strict quality standards are established in the inspection process to ensure the high quality of products. Shenzhen WECODO Technology Co., Ltd. has a professional after-sales service department, which is responsible for offering comprehensive after-sales service and support.

ITEM		UNIT	SPECIFICATIONS	CONDITIONS

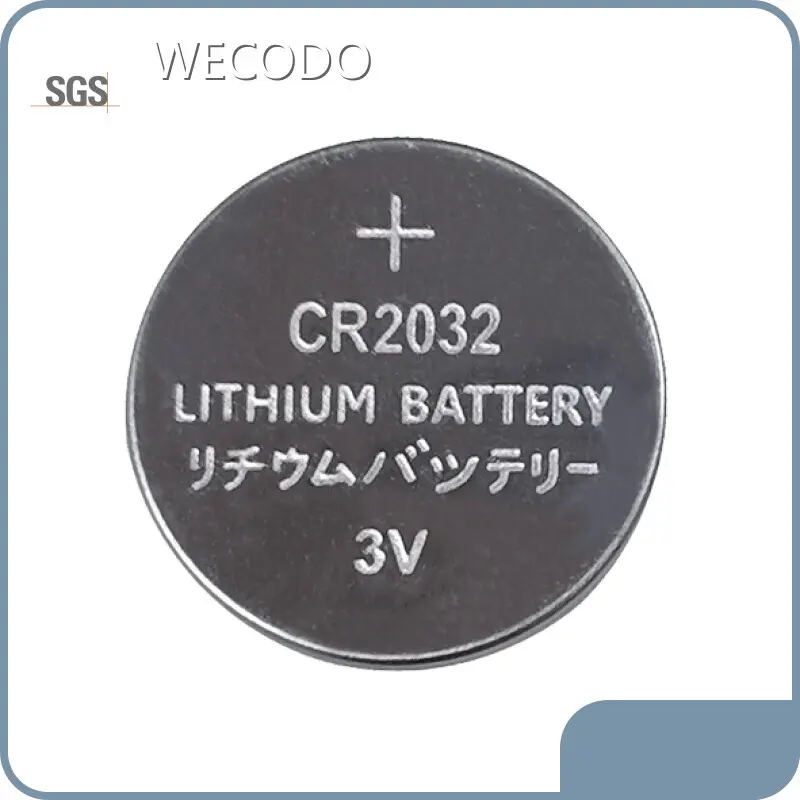

Model			CR2032
Nominal voltage		V	3
Nominal capacity		mAh	210	Standard discharge with load 15kΩ
Instantaneous short–circuit current		mA	≥120	Time≤0.5 second
Off-load voltage		V	≥3.2	Without load
Operating temperature		℃	-20~60
Standard weight		g	~2.75	Unit cell
Discharge capacity	Initial	Standard	1180 hours	Continuous discharge with load 15kΩ, till 2.0v end-voltage
	After 12 months storage	Standard	1110 hours
Red LED light flash test		times	≥500,000	Pulse discharge with red LED light, flash each 1.5 seconds till 1.6v end-voltage
Blue LED light flash test		times	≥2,000,000	Pulse discharge with blue LED light, flash each 1.5 seconds till 2.0v end-voltage

ITEM	CONDITIONS	CHARACTERISTICS
Thermal durability	Storage for 20 days at 50℃±3℃, then continuously discharge with 15kΩ load till 2.0v end-voltage	Standard	1110 hours
Self-discharge rate	Storage for 12 months at normal temperature and humidity	≤1%

Company Feature

• WECODO is located in a place with traffic convenience. There are highways, railways, and airports.
• WECODO was established in During the development, we have constantly explored in the market and have introduced advanced science and technology and production equipment. Now we develop the business on the basis of large-scale production.
• Sticking to the quality-oriented business philosophy, pragmatic and sincere service attitude, our company provides customers with a full range of one-stop service in pre-sales, sales and after sales.
To place orders, please contact WECODO. And you can get a nice gift.
