Lithium Coin Cell Voltage - - WECODO

Product details of the lithium coin cell voltage

Product Description

New type of material is used in lithium coin cell voltage. Product quality is guaranteed because of the rigorous quality control process that effectively eliminates defects. While Shenzhen WECODO Technology Co., Ltd. produces its own products, we can also sample or customize products according to the different requirements of our customers.

ITEM		UNIT	SPECIFICATIONS		CONDITIONS

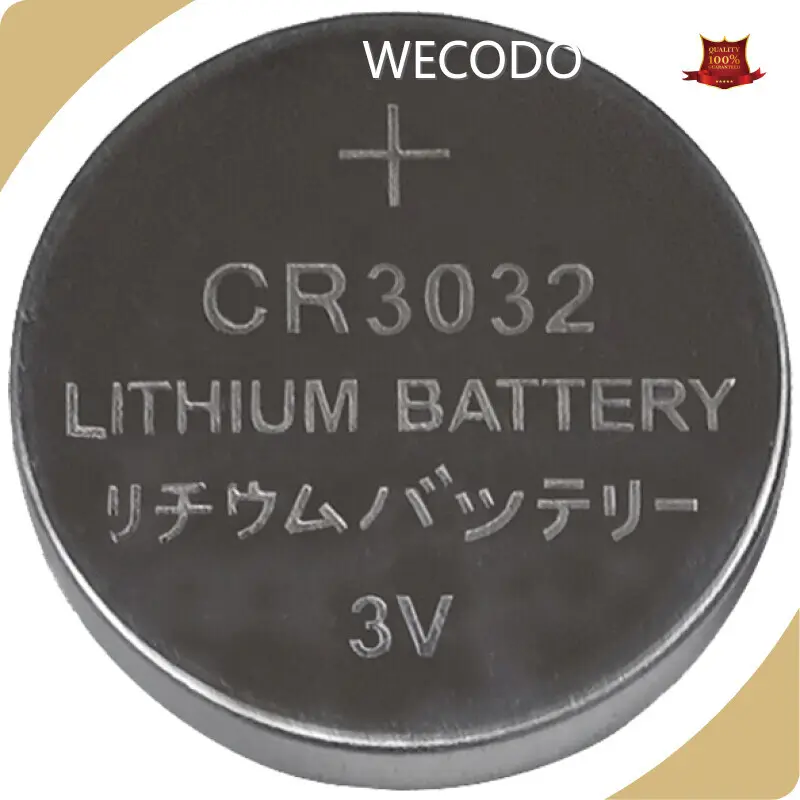

Model			CR3032
Nominal voltage		V	3
Nominal capacity		mAh	500		Standard discharge with load 6.8kΩ
Instantaneous short–circuit current		mA	≥250		Time≤0.5 second
Off-load voltage		V	≥3.20
Operating temperature		℃	-20~60
Standard weight		g	~7.1		Unit cell
Discharge capacity	Initial	Standard	1100 hours		Continuous discharge with load 6.8kΩ, till 2.0v end-voltage at 20~25℃
	After 12 months storage	Standard	880 hours

ITEM	CONDITIONS	CHARACTERISTICS
Thermal durability	Storage for 20 days at 60℃±3℃, then continuously discharge with 6.8kΩ load till 2.0v end-voltage	Standard	950 hours
Self-discharge rate	Storage for 12 months at normal temperature and humidity	≤1%
